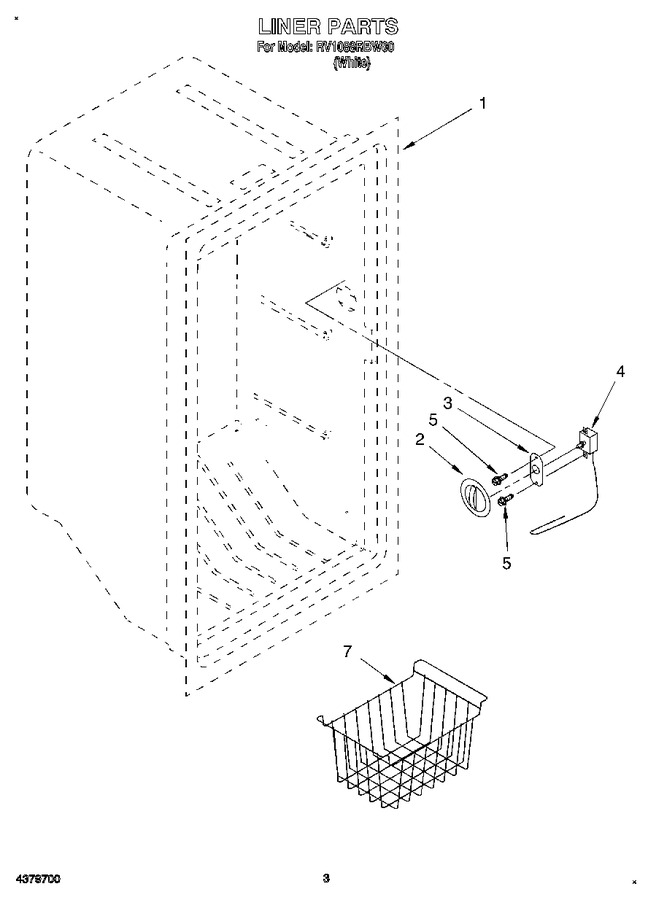

02 - Liner, Lit/optional
03 - Unit
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 4357059 | Control Knob |
|
- | |||||
| 3 | 4357060 | Control Plate |
|
- | |||||
| 4 | 4357061 | Thermostat |
|
$ 129.70 | |||||
| 5 | W11233072 | Screw (Replaces: 4356496) |
|
Immediately | $ 12.62 | ||||
| 7 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 106.15 | |||||
| 7 | 350930 | Xenamel, White (13 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 34.39 | ||||
| 7 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 73.92 | ||||
| 7 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 7 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 208.40 | |||||
| 7 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 7 | WP505587 | Sealer, Master (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 156.56 | ||||
| 7 | 4357062 | Wire Basket |
|
- | |||||
| LIT2165596 | Use & Care Guide |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| LIT4357018 | Wiring Diagram |
|
- |
