SELECT A DIAGRAM

01 - Cabinet


02 - Liner, Lit/optional


03 - Unit

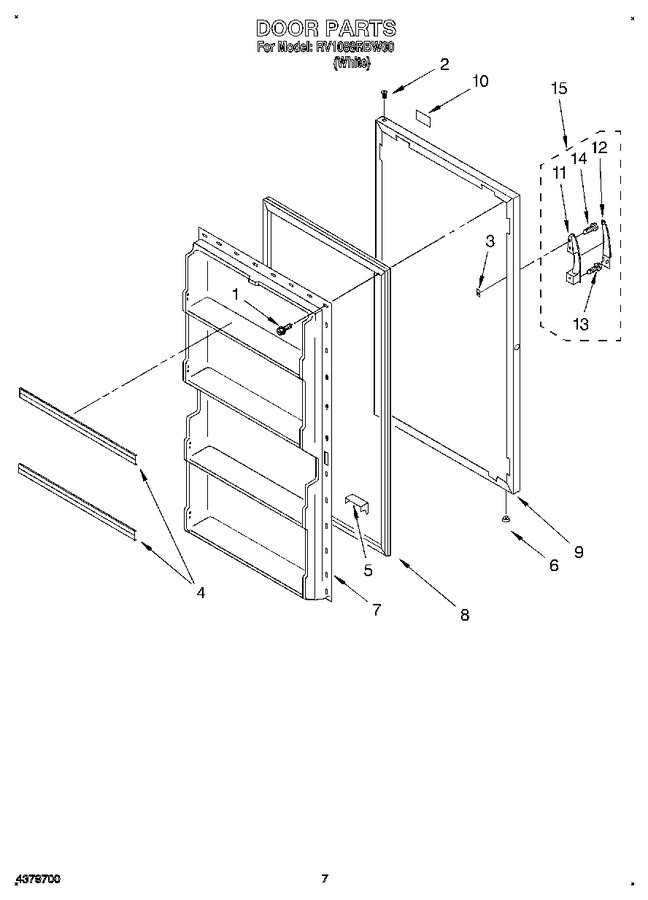

04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489478		Screw   (Replaces: 4356810)				$ 6.98
2	4390523		Hinge, Bushing		Appelez-nous	-
3	4356812		Anchor, Screw		Appelez-nous	-
4	4357082		Door Shelf Trim (4)		Appelez-nous	-
5	4356893		Foam Block		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 9.72
7	4357081		Interior Door		Appelez-nous	-
8	4357064		Door Gasket		Appelez-nous	-
9	4357063		Exterior Door		Appelez-nous	-
10	4356902		Nameplate		Appelez-nous	-
11	4356913		Handle		Appelez-nous	-
12	4356904		Insert, Handle		Appelez-nous	-
13	WP3-24004-109		Screw (long)   (Replaces: 4390510)				$ 7.25
14	W10709795		Screw (short)   (Replaces: 4390511)				$ 11.82
15	4357047		Handle Assembly (includes Items 11, 12, 13 & 14)		Appelez-nous	-
