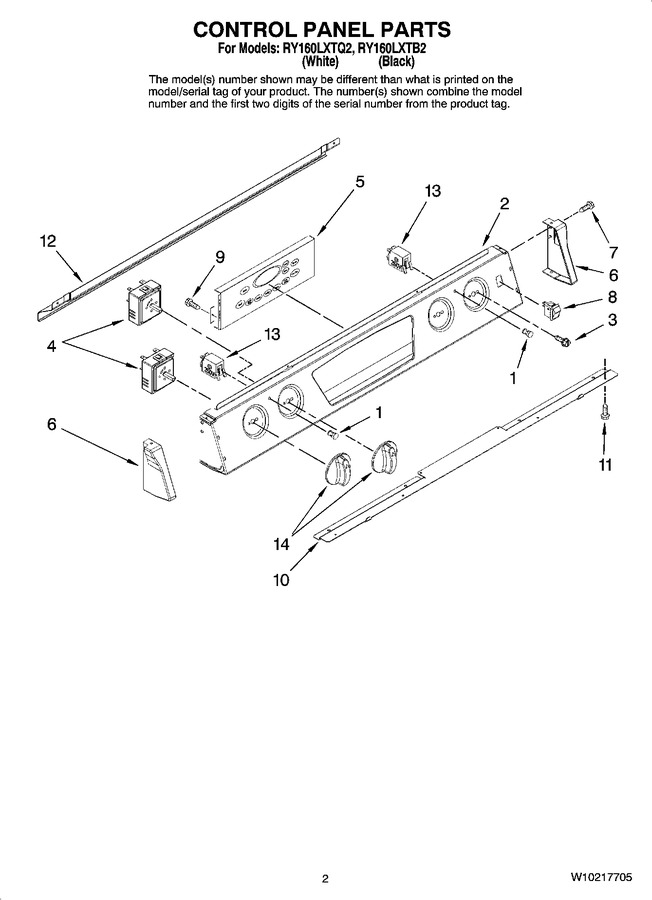

02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7730P011-60		Lens   (Replaces: 7730P011-60)				$ 5.16
2	W10165801		Panel, Control (black)		Appelez-nous	-
2	W10165802		Panel, Control (white)		Appelez-nous	-
3	WP7101P309-60		Screw, Switch (10)   (Replaces: 7101P309-60)			Immediately	$ 6.26
4	WP7403P238-60		Switch, Infinite 6`` (lf/rr)(2)   (Replaces: 7403P238-60)			Immediately	$ 57.78
4	WP7403P239-60		Switch, Infinite 8`` (rf/lr)(2)   (Replaces: 7403P239-60)			Immediately	$ 35.10
5	W10769823		Control W/ Overlay (black)   (Replaces: W10169863)			Immediately	$ 253.24
5	W10769823		Control W/ Overlay (white)   (Replaces: W10169864)			Immediately	$ 253.24
6	7726P401-60		End Cap (left Black)				$ 23.44
6	7726P333-60		End Cap (left White)				$ 17.04
6	7726P400-60		End Cap (right Black)				$ 32.99
6	7726P332-60		End Cap (right White)				$ 30.59
7	WP98008544		Screw, End Cap (white)   (Replaces: 7101P636-60)				$ 11.89
7	WP98008545		Screw, End Cap (black)   (Replaces: 7101P633-60)				$ 15.94
8	74008717		Switch, Rocker (white)   (Replaces: 7403P799-60)				$ 72.68
8	7403P798-60		Switch, Rocker (black)		Appelez-nous	-
9	WP59002061		Screw, Control   (Replaces: 7101P077-60)				$ 6.98
10	3807F601-51		Support, Control Panel		Appelez-nous	-
11	W11233072		Screw, Support (4)   (Replaces: 7101P338-60)			Immediately	$ 12.62
12	3604W156-71		Shield, Vent White				$ 67.89
12	3604W156-70		Shield, Vent (black)		Appelez-nous	-
13	WP74004153		Light, Indicator   (Replaces: 7407P136-60)			Immediately	$ 8.02
14	WP74003611		Knob (4) (white)   (Replaces: 7737P080-60)				$ 17.45
14	7737P082-60		Knob (4) (black)		Appelez-nous	-
