SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts

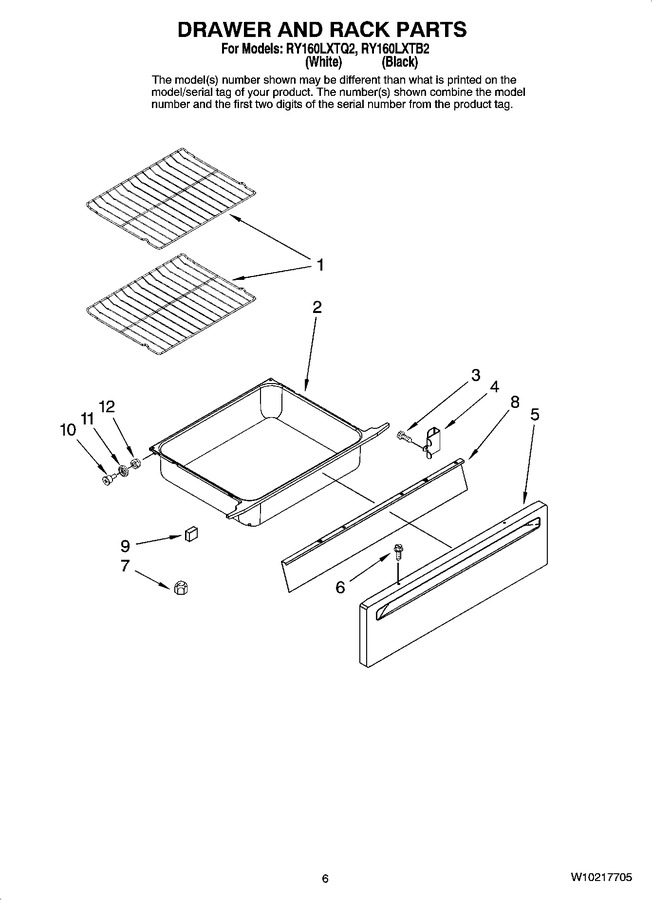

05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10282492		Rack, Oven (2)   (Replaces: 7801P054-60)			Immediately	$ 65.15
2	WP3405F037-80		Drawer, Storage   (Replaces: 3405F033-80)				$ 304.98
3	WP7101P072-60		Screw, Panel   (Replaces: 7101P072-60)				$ 6.77
4	3801F887-51		Bracket, Drawer				$ 8.32
5	2416F059-71		Panel, Drawer (white)				$ 87.92
5	2416F059-70		Panel, Drawer (black)				$ 120.99
6	W10828565		Screw, Panel (black)   (Replaces: 7101P635-60)				$ 6.70
6	WP98008544		Screw, Panel (white)   (Replaces: 7101P636-60)				$ 11.89
7	7103P190-60		Nut, Lock		Appelez-nous	-
8	2404F030-51		Lining, Drawer		Appelez-nous	-
9	WP74005546		Spacer, Rubber   (Replaces: 8010P130-60)				$ 9.48
10	WP74004078		Roller Drawer (2)   (Replaces: 8014P022-60)			Immediately	$ 10.70
11	7118P032-60		Shaft, Roller (2)		Appelez-nous	-
12	WP488130		Nut   (Replaces: 7103P082-60)				$ 6.27

    View Diagram in Separate Window       Print Part List
