01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

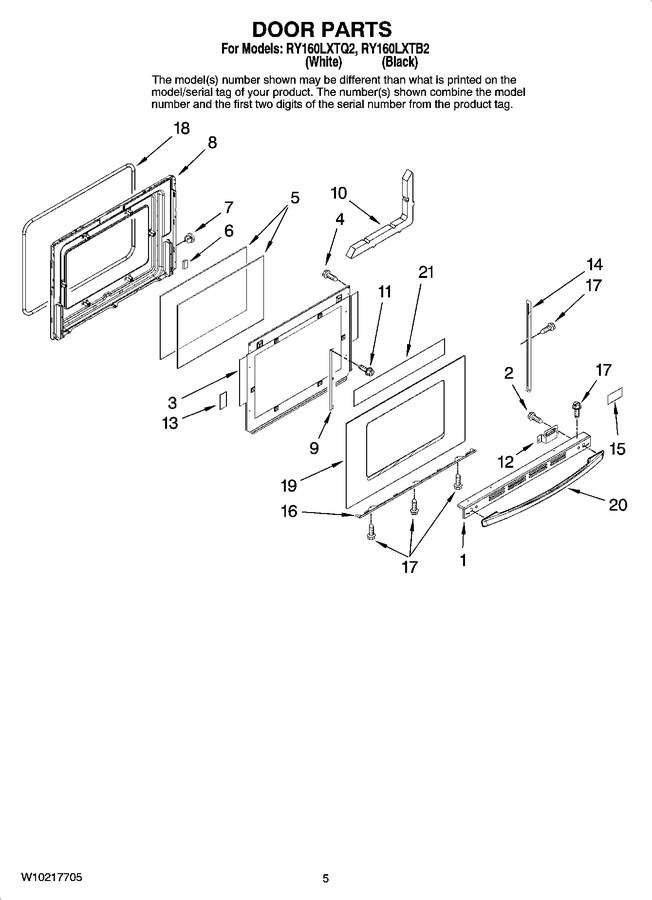

04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10165726 | Trim, Door Top (white) |
|
- | |||||
| 1 | W10165729 | Trim, Door Top (black) |
|
- | |||||
| 2 | WP74006515 | Screw, Handle (2) (Replaces: 7101P681-60) |
|
$ 7.29 | |||||
| 3 | 3601F373-60 | Baffle, Retainer |
|
- | |||||
| 4 | W11233072 | Screw, 8ab X 1/2 (Replaces: 7101P388-60) |
|
Immediately | $ 12.62 | ||||
| 5 | 74003645 | Glass, Inner (2) (Replaces: 7902P436-60) |
|
Immediately | $ 162.53 | ||||
| 6 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 9.48 | |||||
| 7 | WP74001574 | Nut, Snap (4) (Replaces: 7103P141-60) |
|
Immediately | $ 9.91 | ||||
| 8 | 2402W312-19 | Lining, Door |
|
$ 144.50 | |||||
| 9 | 3801F886-51 | Bracket, Glass (2) |
|
$ 38.25 | |||||
| 10 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 11 | WP90767 | Screw (Replaces: Y700502) |
|
Immediately | $ 7.04 | ||||
| 12 | 3801F831-45 | Bracket, Handle (right) |
|
$ 19.17 | |||||
| 12 | 3801F832-45 | Bracket, Handle (left) |
|
$ 19.12 | |||||
| 13 | WP74004224 | Tape, White (Replaces: 8270P139-60) |
|
$ 10.53 | |||||
| 14 | 3608F117-70 | Trim, Door Side (black, Left) |
|
$ 49.73 | |||||
| 14 | WP3608F116-71 | Trim, Door Side (white, Right) (Replaces: 3608F116-71) |
|
$ 112.01 | |||||
| 14 | WP3608F117-71 | Trim, Door Side (white, Left) (Replaces: 3608F117-71) |
|
$ 111.43 | |||||
| 14 | 3608F116-70 | Trim, Door Side (black, Right) |
|
$ 49.75 | |||||
| 15 | 8303811 | Nameplate |
|
$ 29.09 | |||||
| 16 | 74009686 | Trim, Door Bottom (black) |
|
- | |||||
| 16 | WP3807F708-71 | Trim, Door Bottom (white) (Replaces: 74009687) |
|
$ 144.83 | |||||
| 17 | W10828565 | Screw, Trim (black) (Replaces: 7101P635-60) |
|
$ 6.70 | |||||
| 17 | WP98008544 | Screw, Trim (white) (Replaces: 7101P636-60) |
|
$ 11.89 | |||||
| 18 | 7201P152-60 | Seal, Door |
|
- | |||||
| 19 | 7902P815-60 | Glass, Door (order Items 13 & 21 When Replacing Door Glass) (black) |
|
- | |||||
| 19 | 7902P814-60 | Glass, Door (order Items 13 & 21 When Replacing Door Glass) (white) |
|
- | |||||
| 20 | 7701P463-60 | Handle, Door (white) |
|
$ 92.43 | |||||
| 20 | 7701P462-60 | Handle, Door (black) |
|
$ 94.25 | |||||
| 21 | 8270P133-60 | Tape, Foil |
|
- |
