SELECT A DIAGRAM

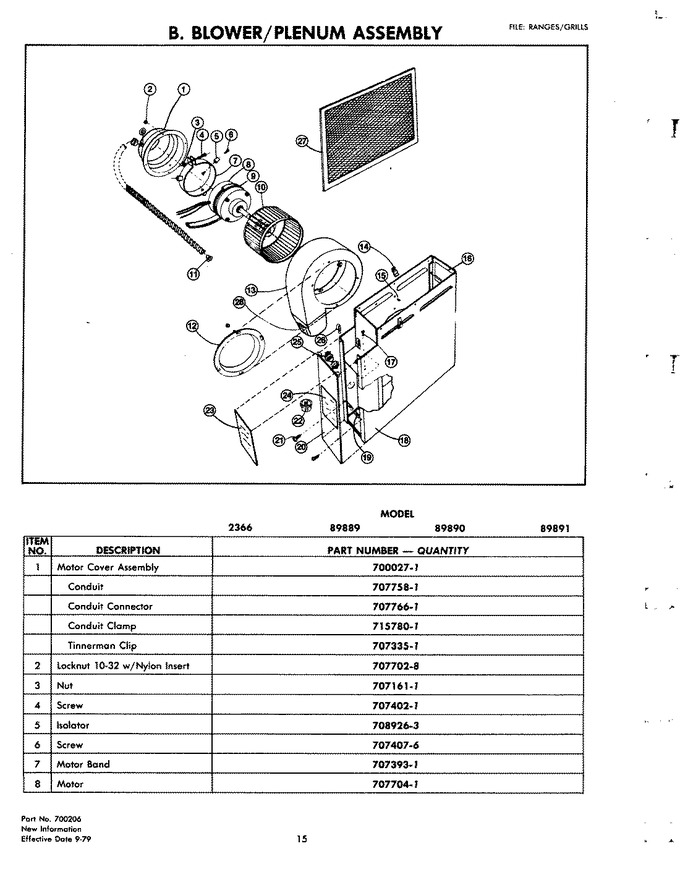

01 - Blower Assembly
02 - Controls
03 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y707335 | Clip |
|
- | |||||
| 1 | Y707758 | Conduit |
|
- | |||||
| 1 | 707766 | Connector |
|
- | |||||
| 1 | 715780 | Clamp, Cable |
|
- | |||||
| 1 | DE81-03521A | Motor Cover Assembly (Replaces: 700027) |
|
$ 208.41 | |||||
| 2 | WPY707702 | Locknut (Replaces: Y707702) |
|
Immediately | $ 6.26 | ||||
| 3 | 707161 | Nut |
|
- | |||||
| 4 | Y707402 | Screw |
|
- | |||||
| 5 | WP71003558 | Isolator (Replaces: Y708926) |
|
$ 11.47 | |||||
| 6 | 707407 | Screw |
|
$ 6.42 | |||||
| 7 | Y707393 | Band, Motor |
|
- | |||||
| 8 | 707704K | Motor (Replaces: Y707704) |
|
Immediately | $ 352.01 | ||||
| 9 | Y715957 | Foam, Urethane |
|
- | |||||
| 10 | WPY707985 | Wheel, Blower (Replaces: Y707985) |
|
Immediately | $ 145.55 | ||||
| 11 | 708185 | Bushing |
|
- | |||||
| 12 | 786316 | Ring, Inlet (with Studs) |
|
- | |||||
| 13 | Y786315 | Scroll |
|
- | |||||
| 14 | Y707688 | Retainer, Filter |
|
- | |||||
| 15 | WPW10253196 | Screw (Replaces: Y707113) |
|
$ 3.76 | |||||
| 16 | 708111 | Cleaning Label |
|
- | |||||
| 17 | WP179051 | Screw (Replaces: 708764) |
|
Immediately | $ 7.16 | ||||
| 18 | Y700482 | Plenum Assy |
|
- | |||||
| 19 | 707683 | Nut |
|
- | |||||
| 20 | Y707681 | Plate, Cover |
|
- | |||||
| 21 | Y707150 | Screw |
|
- | |||||
| 22 | Y707695 | Bushing |
|
- | |||||
| 23 | 700676 | Wire Label |
|
- | |||||
| 24 | 700475 | Label |
|
- | |||||
| 25 | 707085 | Connector, Conduit |
|
- | |||||
| 26 | Y707831 | Clip |
|
- | |||||
| 27 | WP707929 | Filter, Grease (Replaces: 707929) |
|
Immediately | $ 44.51 | ||||
| 28 | 708082 | Caution Label |
|
- |
