01 - Blower Assembly
02 - Controls

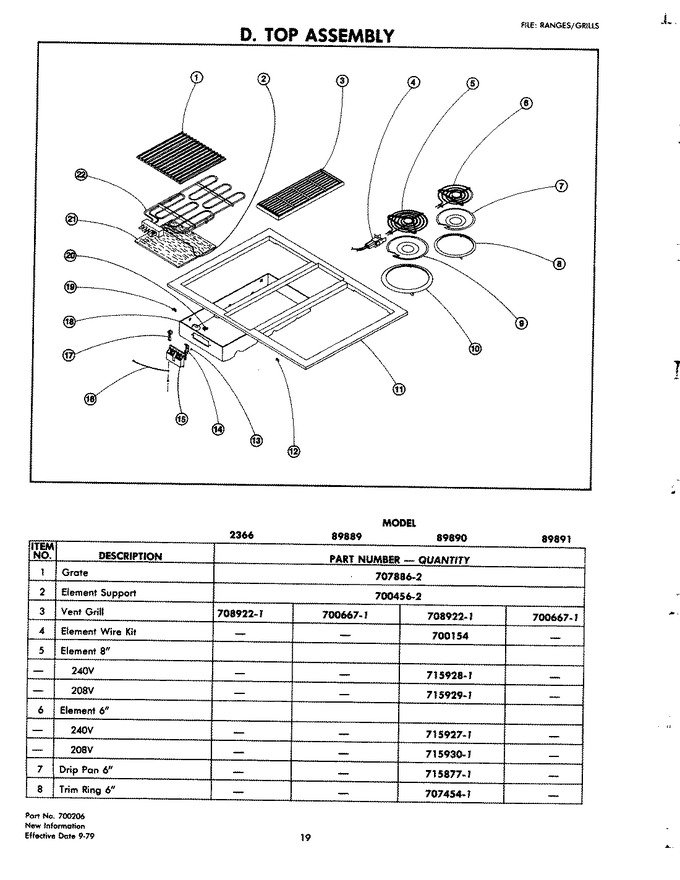

03 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 707886 | Grate |
|
- | |||||
| 2 | 700456 | Support Wire |
|
- | |||||
| 3 | Y708922 | Vent Grill |
|
- | |||||
| 4 | 12001676 | Kit, Wire Element (Replaces: 700154) |
|
Immediately | $ 28.45 | ||||
| 5 | 715929 | Elem 6 208v |
|
- | |||||
| 5 | WPY04100166 | Element, Conv.(8`` 240v) (Replaces: 715928) |
|
Immediately | $ 47.21 | ||||
| 6 | WPY04100165 | Element, Conv.(6`` 240v) (Replaces: 715927) |
|
Immediately | $ 50.62 | ||||
| 6 | Y715930 | Element, Conventional |
|
- | |||||
| 7 | 715877 | Pan, Drip (6``) |
|
Immediately | $ 19.39 | ||||
| 8 | WPY707454 | Adaptor, Ring (6``) (Replaces: Y707454) |
|
Immediately | $ 80.69 | ||||
| 9 | 715878 | Pan, Drip (8``) |
|
Immediately | $ 21.16 | ||||
| 10 | WPY707453 | Adaptor, Ring (Replaces: Y707453) |
|
Immediately | $ 85.57 | ||||
| 11 | DE81-04770A | Top (Replaces: 700669) |
|
$ 88.35 | |||||
| 13 | WP59002061 | Screw (Replaces: Y707172) |
|
$ 6.98 | |||||
| 14 | 74004835 | Clip (Replaces: 715121) |
|
$ 11.37 | |||||
| 15 | Y715120 | Receptacle |
|
$ 24.18 | |||||
| 17 | WP489128 | Screw (Replaces: Y707341) |
|
$ 9.79 | |||||
| 17 | Y708558 | Receptacle Contacts |
|
$ 23.08 | |||||
| 18 | Y700673 | Grill Pan |
|
- | |||||
| 19 | WP90767 | Screw (Replaces: Y700502) |
|
Immediately | $ 7.04 | ||||
| 20 | Y700503 | Clip, Retainer |
|
- | |||||
| 21 | 708929 | Plate, Rock |
|
- | |||||
| 22 | 700491 | Element, Grill |
|
- | |||||
| 22 | 700492 | Grill Element Assembly |
|
- |
