SELECT A DIAGRAM

01 - Blower Assembly

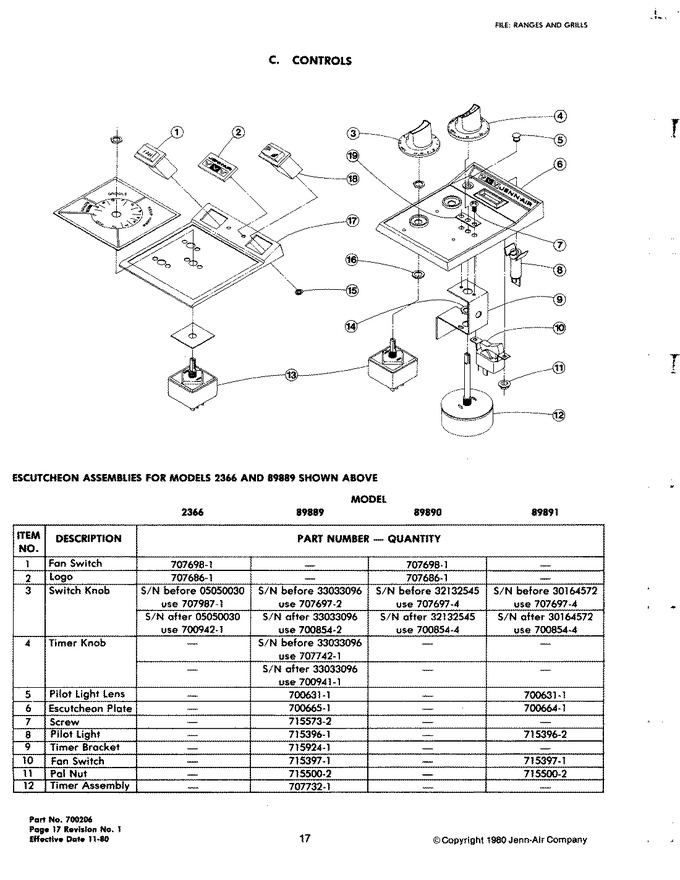

02 - Controls


03 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y707698		Switch, Push		Appelez-nous	-
2	707686		Insert, Logo----na		Appelez-nous	-
3	WPY700854		Knob, Infinite Switch   (Replaces: Y707697)			Immediately	$ 23.22
13	700855K		Switch, Infinite   (Replaces: Y700855)			Immediately	$ 121.91
13	700855K		Infinite Switch Assembly   (Replaces: Y700009)			Immediately	$ 121.91
13	WP3188425		Gasket, Switch   (Replaces: 707990)				$ 82.61
14	W10124350		Not Required Part Or See Note		Appelez-nous	-
15	707138		Palnut		Appelez-nous	-
17	707686		Insert, Logo----na		Appelez-nous	-
17	707684		Plate, Escutcheon		Appelez-nous	-
17	707138		Palnut		Appelez-nous	-
18	Y707699		Light, Pilot		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
