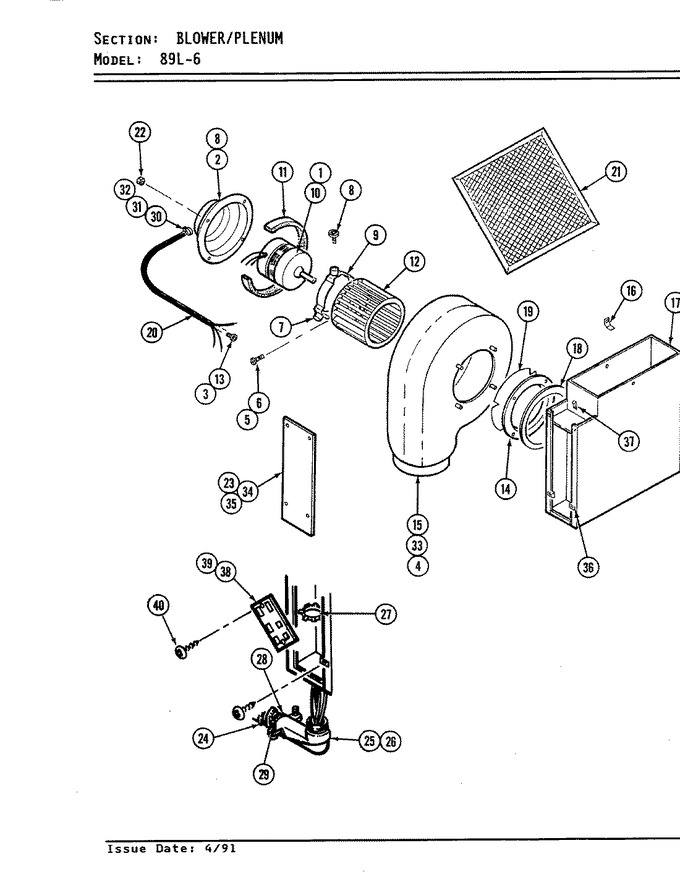

01 - Blower/plenum
02 - Burner Box
03 - Controls
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 712549 | Motor Assy | 01 |
|
- | ||||
| 2 | Y704968 | Cover, Motor | 01 |
|
- | ||||
| 3 | 705186 | Relief, Strain | 01 |
|
- | ||||
| 4 | 702889 | Locknut Cap, W/nylon Insert | 01 |
|
- | ||||
| 5 | 707161 | Nut | 01 |
|
- | ||||
| 6 | Y707402 | Screw | 01 |
|
- | ||||
| 7 | WP71003558 | Isolator (Replaces: Y708926) | 01 |
|
$ 11.47 | ||||
| 8 | 707407 | Screw | 01 |
|
$ 6.42 | ||||
| 9 | Y707393 | Band, Motor | 01 |
|
- | ||||
| 10 | Y705032 | Motor, Blower | 01 |
|
$ 254.76 | ||||
| 11 | Y715957 | Foam, Urethane | 01 |
|
- | ||||
| 12 | WPY707985 | Wheel, Blower (Replaces: Y707985) | 01 |
|
Immediately | $ 145.55 | |||
| 13 | Y705177 | Bushing, Plenum | 01 |
|
- | ||||
| 14 | Y704758 | Ring, Inlet | 01 |
|
- | ||||
| 15 | 712008 | Scroll, Blower Assy. | 01 |
|
- | ||||
| 16 | Y707688 | Retainer, Filter | 01 |
|
- | ||||
| 17 | Y701840 | Plenum | 01 |
|
- | ||||
| 18 | Y704761 | Ring, Restrictor | 01 |
|
- | ||||
| 19 | Y704762 | Retainer | 01 |
|
- | ||||
| 20 | Y705155 | Conduit, Metal | 01 |
|
- | ||||
| 21 | WP707929 | Filter, Grease (Replaces: 707929) | 01 |
|
Immediately | $ 44.51 | |||
| 22 | WPY707702 | Locknut (Replaces: Y707702) | 01 |
|
Immediately | $ 6.26 | |||
| 23 | 7724P050-60 | Cover, Plate | 01 |
|
- | ||||
| 24 | 3414F066-51 | Tubing, Conduit | 01 |
|
- | ||||
| 25 | 7417P005-60 | Connector, Conduit | 01 |
|
- | ||||
| 26 | 8018P002-60 | Sleeve, Tube | 01 |
|
- | ||||
| 27 | 7109P002-60 | Washer | 01 |
|
- | ||||
| 28 | 7111P019-60 | Clamp, Conduit | 01 |
|
- | ||||
| 29 | WP4159193 | Screw (Replaces: 7101P112-60) | 01 |
|
$ 4.29 | ||||
| 30 | 715780 | Clamp, Cable | 01 |
|
- | ||||
| 31 | Y707335 | Clip | 01 |
|
- | ||||
| 32 | Y705154 | Connector | 01 |
|
- | ||||
| 33 | 708082 | Caution Label | 01 |
|
- | ||||
| 34 | 7109P012-60 | Washer, Lock | 01 |
|
- | ||||
| 35 | 7101P294-60 | Screw | 01 |
|
- | ||||
| 36 | 7101958 | Tinnerman, Lower | 01 |
|
- | ||||
| 37 | Y707831 | Clip | 01 |
|
- | ||||
| 38 | 7401P003-60 | Block, Terminal----na | 01 |
|
- | ||||
| 39 | WP4159193 | Screw, Ground (grn) (Replaces: 7101P027-60) | 01 |
|
$ 4.29 | ||||
| 40 | 7101P075-60 | Screw | 01 |
|
- |
