View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower/plenum
02 - Burner Box
03 - Controls
04 - Top Assembly
New Model Search:

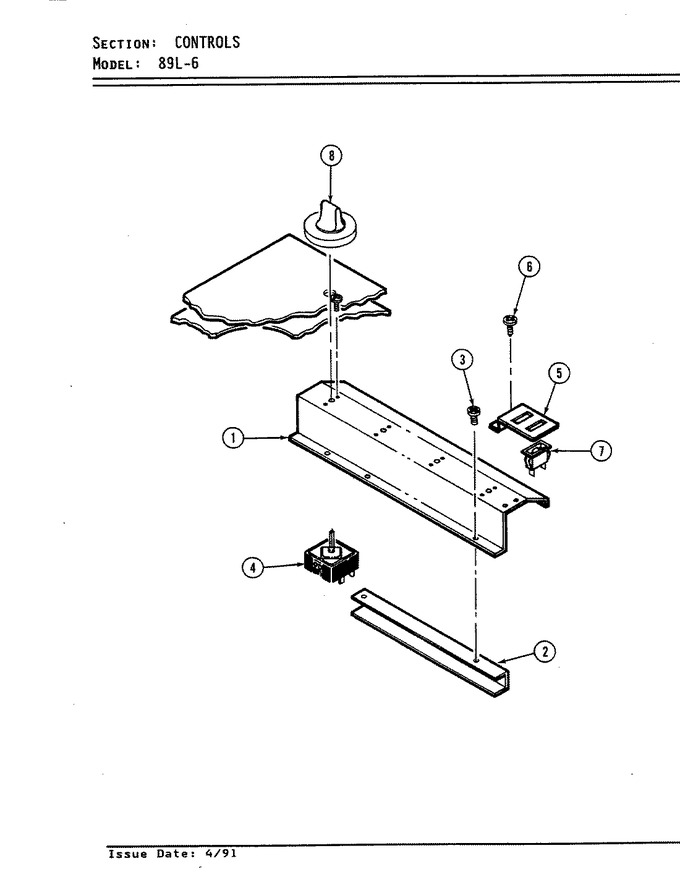

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3605F175-45 | Plate, Switch Mtg | 01 |
|
- | ||||
| 2 | 3807F401-45 | Support Switch | 01 |
|
- | ||||
| 3 | 7101P004-60 | Screw | 01 |
|
- | ||||
| 4 | 7403P312-60 | Switch, Infinite | 05 |
|
- | ||||
| 4 | 7403P267-60 | Switch, Infinite (2400w) | 05 |
|
- | ||||
| 4 | 7403P267-60 | Switch, Infinite (2400w) | 04 |
|
- | ||||
| 4 | 7403P266-60 | Switch, Infinite (1400w) | 04 |
|
- | ||||
| 4 | W11122008 | Switch, Inf. Control (Replaces: 7403P182-60) | 01 |
|
$ 143.28 | ||||
| 4 | 7212P030-60 | Seal, Gasket Inf. Sw. | 01 |
|
- | ||||
| 4 | WP7101P309-60 | Screw (Replaces: 7101P153-60) | 01 |
|
Immediately | $ 6.26 | |||
| 5 | 3801F188-45 | Bracket, Light Indicator | 01 |
|
- | ||||
| 6 | 7101P108-60 | Screw | 01 |
|
- | ||||
| 7 | 7407P074-60 | Light, Indicator (hot Surface) | 01 |
|
- | ||||
| 8 | WP7737P026-60 | Knob, Switch (Replaces: 7737P026-60) | 01 |
|
$ 20.00 |
