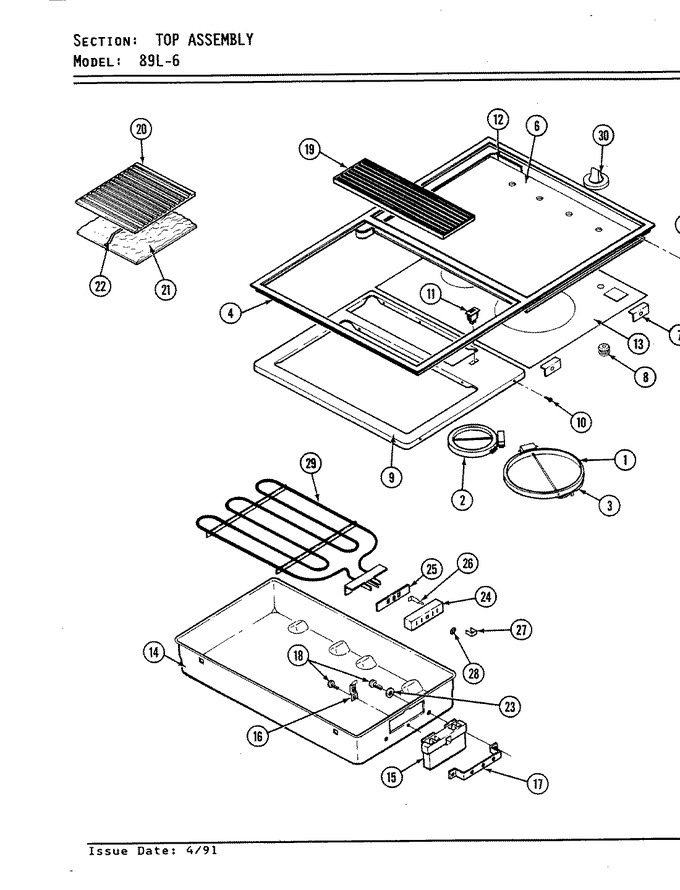

01 - Blower/plenum
02 - Burner Box
03 - Controls
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10823707 | Element W/receptacle (8``) (Replaces: 7406P073-60) | 03 |
|
Immediately | $ 316.13 | |||
| 1 | W10823707 | Element, Giant (Replaces: 7406P057-60) | 01 |
|
Immediately | $ 316.13 | |||
| 2 | W10823704 | Element W/receptacle (6``) (Replaces: 7406P074-60) | 03 |
|
Immediately | $ 309.01 | |||
| 2 | W10823704 | Element, Std (Replaces: 7406P058-60) | 01 |
|
Immediately | $ 309.01 | |||
| 3 | 8004P015-60 | Support, Element | 01 |
|
- | ||||
| 3 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 4 | 7706P292-60 | Frame Top | 01 |
|
- | ||||
| 5 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 01 |
|
$ 6.70 | ||||
| 6 | 7918P033-60 | Glass, Top | 01 |
|
- | ||||
| 6 | 7918P034-60 | Glass, Top | 02 |
|
- | ||||
| 7 | 3804F092-45 | Retainer, Main Top Glass | 01 |
|
- | ||||
| 8 | 8008P033-60 | Grommet | 01 |
|
- | ||||
| 9 | 2002F069-60 | Top, Main Control Panel | 01 |
|
- | ||||
| 10 | 7101P242-60 | Screw | 01 |
|
- | ||||
| 11 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 01 |
|
$ 91.35 | ||||
| 12 | 4870F006-60 | +tape, Silicone 1 In. By 102 I | 01 |
|
$ 37.74 | ||||
| 13 | 3601F205-80 | Baffle, Ceramic Top | 01 |
|
- | ||||
| 14 | 701955 | Pan, Grill (lt) | 01 |
|
- | ||||
| 15 | 5111P104-60 | Wire Receptacle Ctrl | 01 |
|
- | ||||
| 15 | 5111P181-60 | Wire Receptacle Ctrl - Violet | 02 |
|
- | ||||
| 15 | 5155P397-60 | Wire Receptacle Ctrl - Brown | 02 |
|
- | ||||
| 15 | 5155P369-60 | Wire Receptacle Ctrl | 01 |
|
- | ||||
| 15 | 5111P103-60 | Wire, Receptacle (purple) | 01 |
|
- | ||||
| 15 | 5111P182-60 | Wire Receptacle Ctrl - Yellow | 02 |
|
- | ||||
| 15 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 01 |
|
Immediately | $ 96.61 | |||
| 15 | 5111P105-60 | Wire Receptacle Ctrl | 01 |
|
- | ||||
| 16 | 74004835 | Clip (Replaces: Y702699) | 01 |
|
$ 11.37 | ||||
| 17 | Y702698 | Bracket | 01 |
|
- | ||||
| 18 | 7101P294-60 | Screw | 01 |
|
- | ||||
| 19 | 8312P051-60 | Grill, Air | 01 |
|
- | ||||
| 20 | 8312P068-60 | Grill Grate | 01 |
|
- | ||||
| 21 | 708929 | Plate, Rock | 01 |
|
- | ||||
| 22 | 700819 | Support, Rock Plate | 01 |
|
$ 71.81 | ||||
| 23 | Y707664 | Washer | 01 |
|
- | ||||
| 24 | WPY708730 | Block, Terminal (Replaces: Y708730) | 01 |
|
Immediately | $ 87.44 | |||
| 25 | Y700449 | Insulator | 01 |
|
- | ||||
| 26 | Y708572 | Spade, Contact | 01 |
|
Immediately | $ 11.34 | |||
| 27 | Y700450 | Clip, Shunt | 01 |
|
$ 9.51 | ||||
| 28 | Y708862 | Nut, Speed | 01 |
|
$ 13.08 | ||||
| 29 | 7109P012-60 | Washer, Lock | 01 |
|
- | ||||
| 29 | Y04100007 | Element, Grill (240v) | 01 |
|
- | ||||
| 30 | WP7737P026-60 | Knob, Switch (Replaces: 7737P026-60) | 01 |
|
$ 20.00 | ||||
| 31 | 20003078 | Cooktop Cleaning Creme (Replaces: 20000001) | 01 |
|
- | ||||
| 31 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 01 |
|
Immediately | $ 4.86 |
