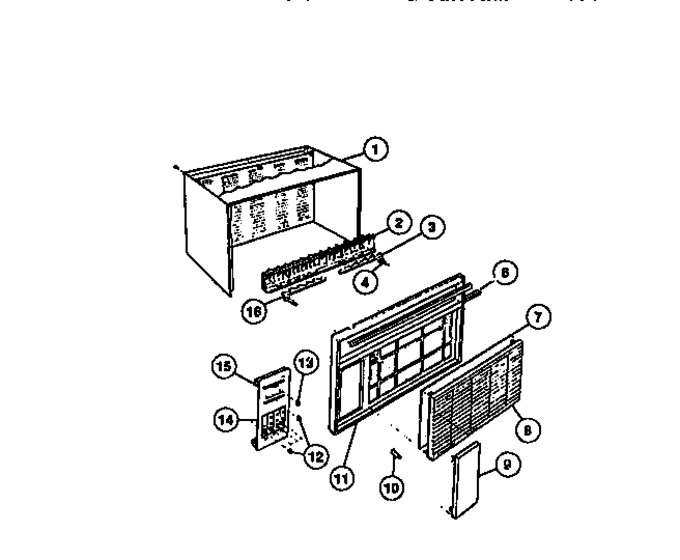

02 - Cabinet Front & Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor


06 - Evaporator, Condenser, Base, Evapor


07 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303207184		Shell-cabinet		Appelez-nous	-
2	5303002458		Vert. Louver & Link Assy.		Appelez-nous	-
3	5303002164		Link-louver Rh		Appelez-nous	-
4	5303001844		Clip-link		Appelez-nous	-
4	5308008175		Screw, Front (ni)		Appelez-nous	-
6	5308014101		Seal-mullion		Appelez-nous	-
7	5308017249		Filter, Framed		Appelez-nous	-
8	5303016551		Panel - Front		Appelez-nous	-
9	5308016199		Door, Front		Appelez-nous	-
10	5308010914		Clip-front To Base		Appelez-nous	-
11	5308017324		Front, Complete		Appelez-nous	-
12	5308016116		Knob-push Button		Appelez-nous	-
13	5303002189		Knob-slide		Appelez-nous	-
14	5308017339		Plate, Dial		Appelez-nous	-
15	5303001984		Seal - Dial Plate		Appelez-nous	-
16	5308017294		Track, Filter (ni)		Appelez-nous	-
16	5308016088		Spacer, Dial Plate (ni)		Appelez-nous	-
16	5303002165		Link-louver Lh		Appelez-nous	-
