03 - Control Parts
04 - Air Handling Parts
05 - Compressor
06 - Evaporator, Condenser, Base, Evapor
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

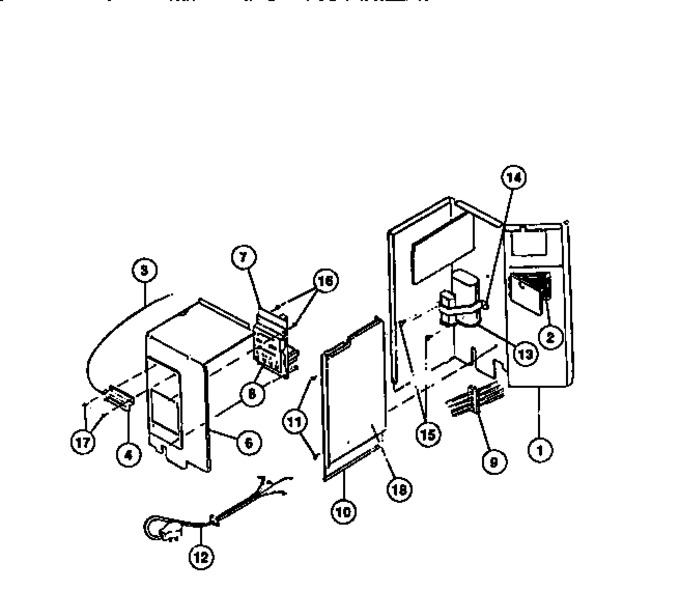

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209160 | Bulkhead-control |
|
- | |||||
| 2 | 3204944 | Door-vent |
|
- | |||||
| 3 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 4 | 3202941 | Arm, Actuator (ni) |
|
- | |||||
| 4 | 5303202999 | Retainer - Actuator |
|
- | |||||
| 6 | 3203066 | Panel-control |
|
- | |||||
| 7 | 5308017366 | Control-electric |
|
- | |||||
| 8 | 08017355 | Cover - Pc Board |
|
- | |||||
| 9 | 3203067 | Harness-wiring |
|
- | |||||
| 10 | 3202962 | Divider-vertical |
|
- | |||||
| 11 | 5303015427 | Screw - Divider |
|
- | |||||
| 12 | 5308017362 | Cord, Electric Service |
|
- | |||||
| 13 | 5303012047 | Capacitor |
|
- | |||||
| 14 | 5303015323 | Strap-capacitor |
|
- | |||||
| 15 | 5303015427 | Screw-capacitor |
|
- | |||||
| 16 | 08016220 | Screw - Control |
|
- | |||||
| 17 | 3015312 | Screw-actuator |
|
- | |||||
| 18 | 3203068 | Insulation |
|
- | |||||
| 18 | 08017123 | Holder, Thermostat (ni) |
|
- |
