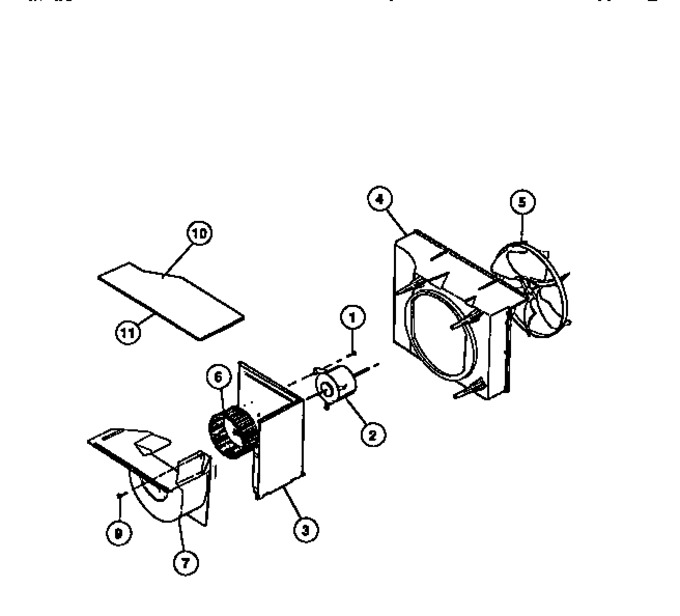

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202975 | Screw-motor Mtg (3) |
|
- | |||||
| 2 | 5303202807 | Motor-fan |
|
- | |||||
| 3 | 3202938 | Bulkhead-air |
|
- | |||||
| 4 | 3202951 | Seal, Shroud Base (ni) |
|
- | |||||
| 4 | 3202950 | Shroud-condenser |
|
- | |||||
| 4 | 3202953 | Seal, Shroud Cond (ni) |
|
- | |||||
| 5 | 5303202954 | Blade-fan |
|
- | |||||
| 6 | 5303012110 | Clamp, Blower Wheel (ni) |
|
$ 8.14 | |||||
| 6 | 5303201132 | Wheel - Blower |
|
- | |||||
| 7 | 3202956 | Scroll-evaporator |
|
- | |||||
| 9 | 3202975 | Screw |
|
- | |||||
| 10 | 3202957 | Cover-top |
|
- | |||||
| 11 | 3202958 | Insulation-top Cover |
|
- | |||||
| 11 | 5303015427 | Screw, Top Cover (ni) |
|
- |
