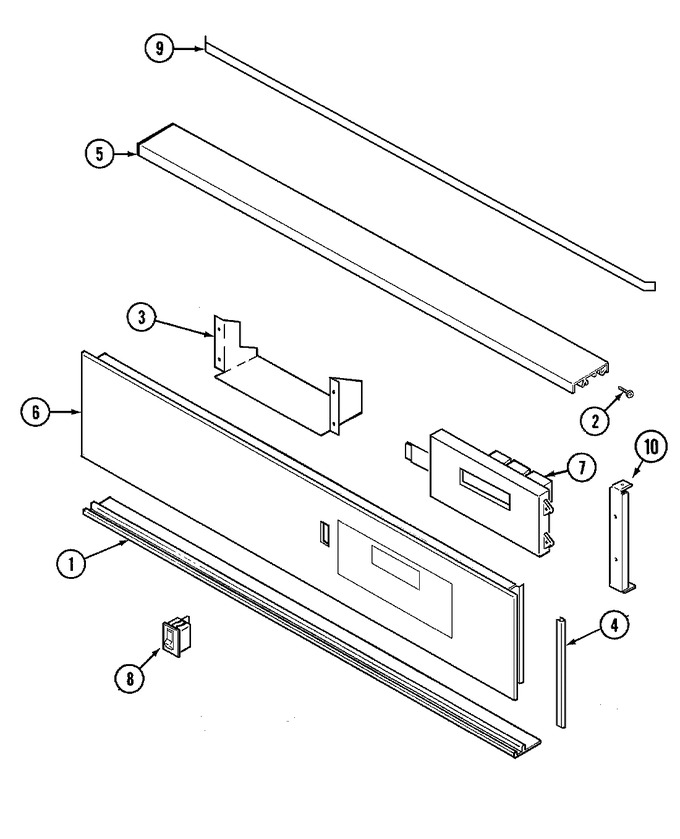

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71003299		Trim, Vent (blk)	23	Appelez-nous	-
1	7756P098-60		Trim, Vent (blk)	14	Appelez-nous	-
2	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	14			$ 15.94
3	7003P056-60		Insulation, Fiberboard	14	Appelez-nous	-
3	71003304		Insulation, Fiberboard	23	Appelez-nous	-
4	W10124350		Not Required Part Or See Note	23	Appelez-nous	-
4	7720P151-60		Trim, Control Panel (blk)	14	Appelez-nous	-
5	71003301		Trim, Top (blk)	23	Appelez-nous	-
5	7756P100-60		Trim, Top (blk)	14	Appelez-nous	-
5	71002699		Extrusion, Top Trim (blk)	16	Appelez-nous	-
6	74003189		Panel, Control (blk)	14	Appelez-nous	-
6	71003323		Panel, Control (blk)	23	Appelez-nous	-
7	71003325		Clock (blk)	23	Appelez-nous	-
7	74002873		Overlay, Clock (blk)	14	Appelez-nous	-
7	71003327		Overlay, Clock (blk)	23	Appelez-nous	-
7	74002872		Clock (blk)	14	Appelez-nous	-
8	7403P067-60		Switch, Rocker (blk)   (Replaces: 7403P102-60)	14			$ 91.35
9	7752P010-60		Trim, Filler Strip (blk)	14	Appelez-nous	-
9	W10828565		Screw, Black   (Replaces: 7101P270-60)	14			$ 6.70
10	71003305		Bracket, Clock Mounting	23	Appelez-nous	-
10	74002932		Support, Clock	14	Appelez-nous	-
12	74001604		Harness, Wire Door Switch	14	Appelez-nous	-
12	74001614		Harness, Wire Main	14	Appelez-nous	-
12	71003330		Harness, Oven Sensor/lock	23	Appelez-nous	-
12	71003329		Harness, Main	23	Appelez-nous	-
13	71002782		Guide, Cooking	23	Appelez-nous	-
13	74002701		Manual, Use & Care	14	Appelez-nous	-
13	71003331		Manual, Use & Care	23	Appelez-nous	-
14	16000326		Guide, Quick Ref - Jenn-air	14	Appelez-nous	-
