01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information
07 - Wiring Information (series 23)
SELECT A DIAGRAM
New Model Search:

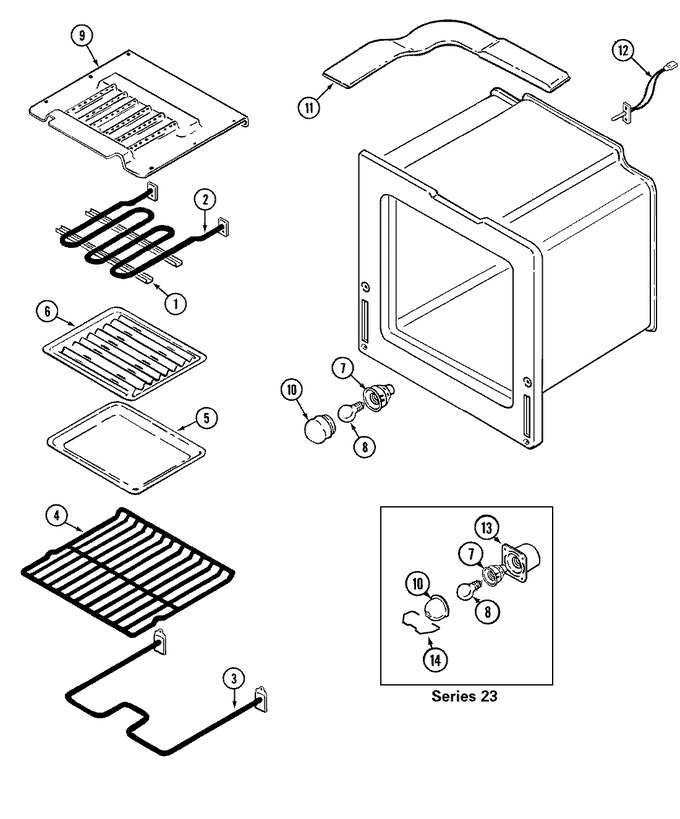

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F387-45 | Support, Broil Element | 14 |
|
- | ||||
| 1 | W11772394 | Screw (Replaces: 7101P345-60) | 14 |
|
Immediately | $ 10.94 | |||
| 2 | Y04000072 | Element, Broil | 14 |
|
- | ||||
| 2 | 74004041 | Element, Broil (6 Pass) | 23 |
|
- | ||||
| 3 | 74004039 | Element, Bake | 23 |
|
$ 81.23 | ||||
| 3 | WP74003020 | Element, Bake (Replaces: Y04000071) | 14 |
|
Immediately | $ 129.31 | |||
| 4 | WPW10282492 | Rack, Oven (Replaces: 74001757) | 22 |
|
Immediately | $ 65.15 | |||
| 4 | WPW10282492 | Rack, Oven (Replaces: 74002105) | 14 |
|
Immediately | $ 65.15 | |||
| 5 | Y3401F02019 | Pan, Broil | 14 |
|
- | ||||
| 6 | Y3413F01619 | Insert, Broil Pan | 14 |
|
- | ||||
| 7 | 74003387 | Receptacle, Bulb | 23 |
|
$ 5.84 | ||||
| 7 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 14 |
|
Immediately | $ 66.10 | |||
| 8 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 14 |
|
Immediately | $ 16.80 | |||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 14 |
|
Immediately | $ 12.62 | |||
| 9 | 3601F237-47 | Baffle, Broil | 14 |
|
- | ||||
| 10 | 74003389 | Cover, Bulb | 23 |
|
- | ||||
| 10 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 14 |
|
Immediately | $ 71.93 | |||
| 11 | 7506P125-60 | Tube, Vent | 14 |
|
- | ||||
| 11 | 74004097 | Tube, Vent | 23 |
|
- | ||||
| 12 | 12001656 | Sensor, Oven (Replaces: 7430P010-60) | 14 |
|
Immediately | $ 39.55 | |||
| 12 | 12001656 | Sensor, Oven (long) (Replaces: 74003390) | 23 |
|
Immediately | $ 39.55 | |||
| 13 | 74003388 | Housing, Bulb | 23 |
|
- | ||||
| 14 | 74003391 | Retainer, Bulb Cover | 23 |
|
- |
