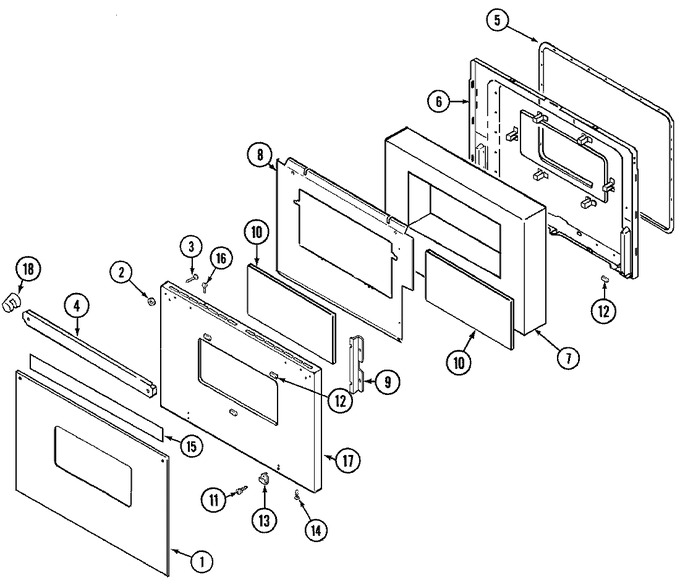

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P372-60		Glass, Door (blk)----na	14	Appelez-nous	-
1	71002810		Glass, Oven (blk)----na	20	Appelez-nous	-
2	74003986		Spacer, Glass   (Replaces: 8010P016-60)	14			$ 13.08
3	7101P326-60		Screw	14	Appelez-nous	-
4	71002814		Handle, Oven Door (blk)	20	Appelez-nous	-
4	71002091		Tape, Dbl. Sided (blk)	20	Appelez-nous	-
4	790297		Handle, Door (blk)	14	Appelez-nous	-
5	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	14		Immediately	$ 77.61
6	74003244		Lining, Door	21	Appelez-nous	-
6	74001058		Lining, Door	14	Appelez-nous	-
7	74001842		Insulation, Door	14	Appelez-nous	-
8	74001843		Baffle, Door	14	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	14		Immediately	$ 12.62
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	14		Immediately	$ 12.62
9	74001844		Retainer, Glass	14	Appelez-nous	-
10	74001841		Glass, Inner	14	Appelez-nous	-
11	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	14			$ 15.94
12	8010P085-60		Spacer, Rubber	14	Appelez-nous	-
13	7112P093-60		Clip, Glass (blk)	14			$ 12.67
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	14		Immediately	$ 12.62
15	8270P090-60		Tape, Foil (3`` Wide)	14	Appelez-nous	-
16	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	14			$ 15.94
17	71003620		Panel, Door (blk)	26	Appelez-nous	-
17	2401F123-70		Panel, Door (blk)	14	Appelez-nous	-
18	W10124350		Not Required Part Or See Note Not Required (blk)	20	Appelez-nous	-
18	W10124350		Not Required Part Or See Note Not Required (wht)	18	Appelez-nous	-
18	790210		Cap, End (blk)	14	Appelez-nous	-
