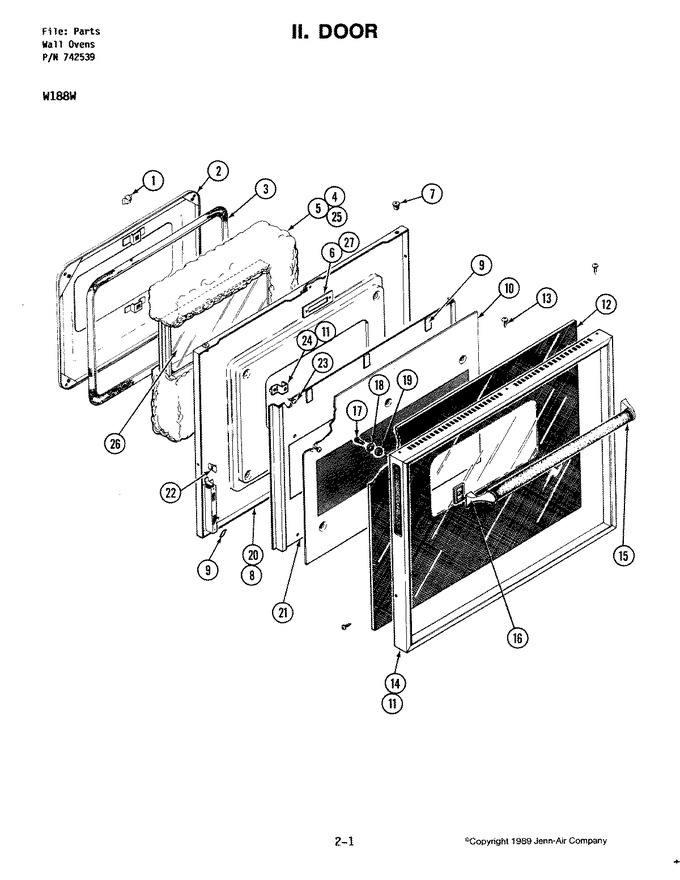

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 2 | Y712174 | Plug | 1 |
|
- | ||||
| 3 | WP701650 | Seal, Oven Door (Replaces: 701650) | 1 |
|
$ 184.62 | ||||
| 4 | DE81-08905A | Insulation, Side (Replaces: 701659) | 1 |
|
$ 160.26 | ||||
| 5 | 702279 | Insulation-top & Sides | 1 |
|
- | ||||
| 6 | Y712010 | Plate, Latch (upper) | 1 |
|
- | ||||
| 7 | 701643 | Nut, Push In | 1 |
|
- | ||||
| 8 | DE81-07129A | Rivet, Accordion (Replaces: 701641) | 1 |
|
$ 128.48 | ||||
| 9 | 715938 | Pad, Spacer | 1 |
|
- | ||||
| 10 | 704468 | Panel, Perforated (wht) | 1 |
|
- | ||||
| 11 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 12 | 704455 | Glass, Upper Door | 1 |
|
- | ||||
| 13 | W11233072 | Screw (Replaces: Y708733) | 1 |
|
Immediately | $ 12.62 | |||
| 14 | 703705 | Frame | 1 |
|
- | ||||
| 15 | ODH1 | Handle ----na (Replaces: 704453) | 1 |
|
$ 45.63 | ||||
| 16 | Y704454 | End Cap (wht) | 1 |
|
- | ||||
| 17 | Y704231 | Screw | 1 |
|
- | ||||
| 18 | Y700446 | Washer | 1 |
|
$ 5.27 | ||||
| 19 | Y704230 | Washer | 1 |
|
- | ||||
| 20 | 712188 | Liner, Door | 1 |
|
- | ||||
| 21 | 712250 | Baffle | 1 |
|
- | ||||
| 22 | Y700834 | Clip | 1 |
|
- | ||||
| 23 | WPY706189 | Screw (Replaces: 700906) | 1 |
|
Immediately | $ 6.47 | |||
| 24 | 701652 | Bracket, Stand-off | 1 |
|
- | ||||
| 25 | 701658 | Insulation, Bottom | 1 |
|
- | ||||
| 26 | 701648 | Window Pack | 1 |
|
- | ||||
| 27 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 |
