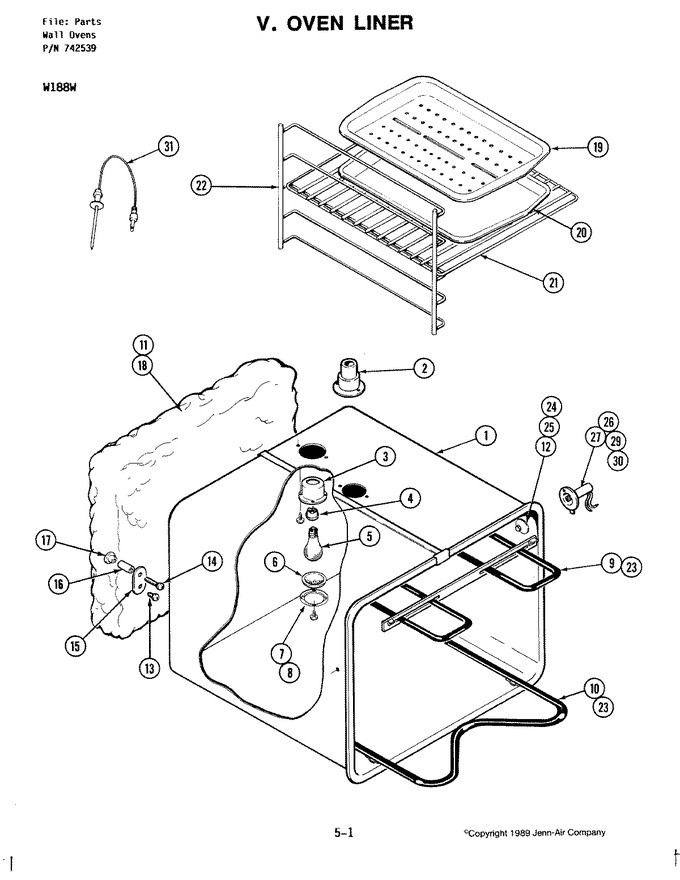

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 712378 | Weld, Oven | 1 |
|
- | ||||
| 2 | 701738 | Tube, Vent | 1 |
|
- | ||||
| 3 | 704142 | Receptacle, Holder | 1 |
|
- | ||||
| 4 | Y704145 | Receptacle, Snap-in | 1 |
|
- | ||||
| 5 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) | 1 |
|
Immediately | $ 16.80 | |||
| 6 | Y704143 | Lens, Light | 1 |
|
- | ||||
| 7 | Y704144 | Retainer, Lens | 1 |
|
- | ||||
| 8 | WP1163283 | Screw (Replaces: Y703741) | 1 |
|
$ 6.47 | ||||
| 9 | WPY04100016 | Element, Broil (Replaces: Y701729) | 1 |
|
$ 137.21 | ||||
| 10 | WPY04100020 | Element, Bake 240v (Replaces: Y701724) | 1 |
|
Immediately | $ 136.96 | |||
| 11 | 701702 | Insulation, Wrap | 1 |
|
- | ||||
| 12 | DE81-03805A | Cover (upper) (Replaces: 701732) | 1 |
|
$ 113.65 | ||||
| 13 | WP71001171 | Screw (Replaces: Y707745) | 1 |
|
$ 6.26 | ||||
| 14 | 701744 | Screw | 1 |
|
- | ||||
| 15 | 701742 | Plate, Grounding | 1 |
|
- | ||||
| 16 | 701741 | Spacer, Oven | 1 |
|
- | ||||
| 17 | 715294 | Nut, Tee | 1 |
|
- | ||||
| 18 | 701703 | Insulation, Rear | 1 |
|
- | ||||
| 19 | 4396923 | Insert, Broil Pan (Replaces: 703165) | 1 |
|
Immediately | $ 52.04 | |||
| 20 | 4396923 | Pan, Broil (Replaces: 703164) | 1 |
|
Immediately | $ 52.04 | |||
| 21 | Y701725 | Rack, Oven | 1 |
|
- | ||||
| 22 | Y701728 | Support, Rack | 1 |
|
- | ||||
| 23 | WP179051 | Screw (Replaces: 708764) | 1 |
|
Immediately | $ 7.16 | |||
| 24 | 703773 | Screw | 1 |
|
- | ||||
| 25 | 703007 | Standoff | 1 |
|
- | ||||
| 26 | 703262 | Harness, Probe | 1 |
|
- | ||||
| 27 | Y703022 | Jack, Probe | 1 |
|
- | ||||
| 28 | 702791 | Bracket | 1 |
|
- | ||||
| 29 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 30 | Y701731 | Mount, Meat Probe | 1 |
|
- | ||||
| 31 | WP71001870 | Probe, Meat (Replaces: Y700884) | 1 |
|
$ 201.71 |
