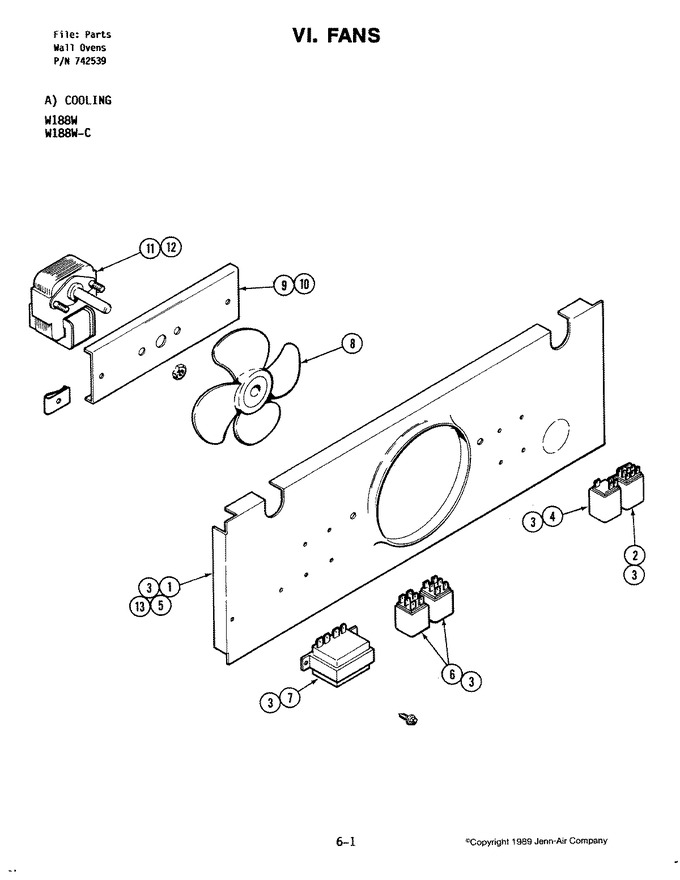

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704336 | Plate, Motor | 1 |
|
- | ||||
| 2 | 702811 | Relay, Clean | 1 |
|
- | ||||
| 3 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 4 | 702810 | Relay, Convect | 1 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 6 | 702809 | Relay, Bake & Broil | 1 |
|
- | ||||
| 7 | Y703270 | Transformer | 1 |
|
- | ||||
| 8 | 702944 | Blade, Fan | 1 |
|
- | ||||
| 9 | Y703570 | Mount, Motor | 1 |
|
- | ||||
| 10 | 701958 | Clip, Tinnerman | 1 |
|
- | ||||
| 11 | Y701721 | Motor, Fan | 1 |
|
- | ||||
| 12 | M0282005 | Nut, Hex (Replaces: 701719) | 1 |
|
$ 7.07 | ||||
| 13 | 712025 | Plenum, Upper | 1 |
|
- |
