SELECT A DIAGRAM
01 - Access
02 - Body
03 - Body (rear)
04 - Control Panel
05 - Door
06 - Gas Controls
07 - Oven
SELECT A DIAGRAM
New Model Search:

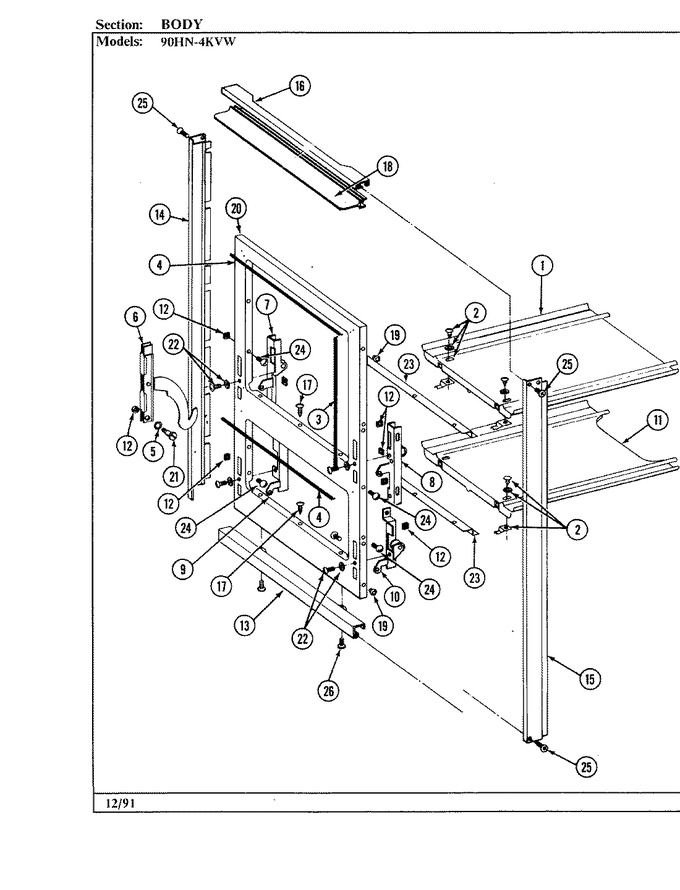

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5720A005-23 | Plate, Oven Bottom A | 01 |
|
- | ||||
| 2 | 1430315 | Clip, Oven Bottom Plate | 01 |
|
- | ||||
| 3 | 7212P015-60 | Seal, Door (side) | 01 |
|
$ 45.93 | ||||
| 4 | WP7212P006-60 | Seal, Oven Door (Replaces: 7212P018-60) | 01 |
|
$ 105.81 | ||||
| 5 | 7109P023-60 | Washer | 01 |
|
- | ||||
| 6 | 3418A045-34 | Hinge, Door | 01 |
|
- | ||||
| 7 | 3807A292-34 | Support, Hinge (lt) | 01 |
|
- | ||||
| 8 | 3807A293-34 | Support, Hinge (rt) | 01 |
|
- | ||||
| 9 | 3807A258-34 | Support Broiler Dr | 01 |
|
- | ||||
| 10 | 3807A259-34 | Support Broiler Dr | 01 |
|
- | ||||
| 11 | 3428A003-19 | Bottom, Broiler Compartment | 01 |
|
- | ||||
| 12 | M0282009 | Nut 10-24 (Replaces: 7103P071-60) | 01 |
|
$ 12.06 | ||||
| 13 | 7754P001-60 | Extrusion, Bottom Trim | 01 |
|
- | ||||
| 14 | 7750P005-60 | Trim, Side Lt | 01 |
|
- | ||||
| 15 | 7750P006-60 | Trim, Side Rt | 01 |
|
- | ||||
| 16 | 7752P001-60 | Extrusion, Top | 01 |
|
- | ||||
| 17 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 18 | 7756P046-60 | Extrusion, Vent (brt) | 01 |
|
- | ||||
| 19 | 7103P080-60 | Nut, Expansion | 01 |
|
- | ||||
| 20 | 2201F053-19 | Front, Main | 01 |
|
- | ||||
| 21 | 7101P135-60 | Screw, Shoulder | 01 |
|
- | ||||
| 22 | WP3400094 | Screw, W/washer (Replaces: 7101P188-60) | 01 |
|
$ 7.14 | ||||
| 23 | 3807F255-19 | Support Plate | 01 |
|
- | ||||
| 24 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 01 |
|
$ 6.77 | ||||
| 25 | 7101P157-60 | Screw | 01 |
|
- |
