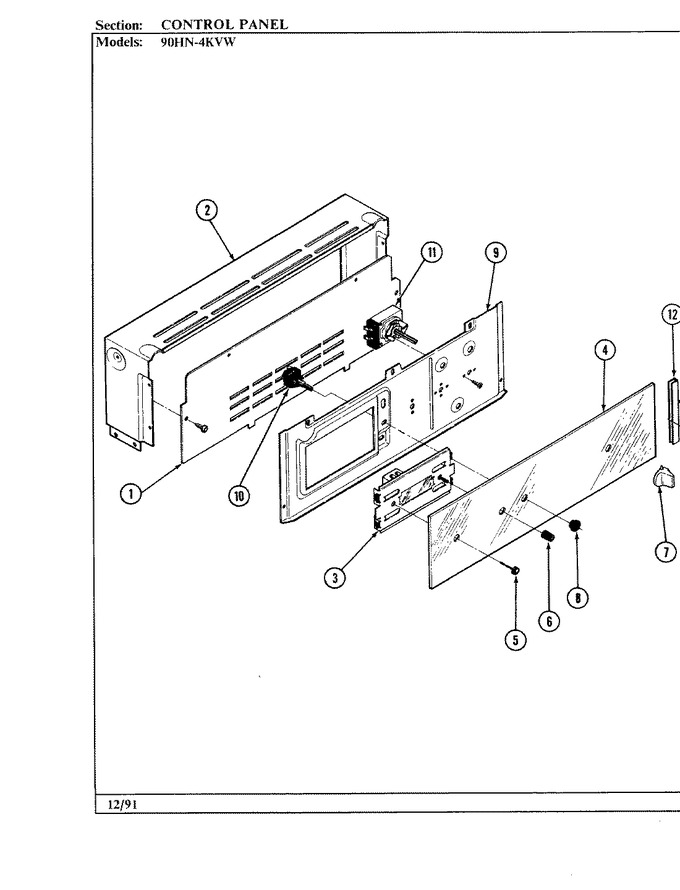

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Access
02 - Body
03 - Body (rear)
04 - Control Panel
05 - Door
06 - Gas Controls
07 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F098-51 | Back Control Box | 01 |
|
- | ||||
| 2 | 4006F057-51 | Box Control | 01 |
|
- | ||||
| 3 | 7602P097-60 | Clock | 01 |
|
- | ||||
| 4 | 7912P071-60 | Glass Control Panel | 01 |
|
- | ||||
| 5 | 7711P420-60 | Knob, Clock (button-wht) | 01 |
|
- | ||||
| 6 | 7711P419-60 | Knob, Clock (wht) | 01 |
|
- | ||||
| 7 | 7731P047-60 | Knob, Thermostat | 01 |
|
- | ||||
| 8 | 7214P023-60 | Sleeve, Switch (wht) | 01 |
|
- | ||||
| 9 | 3807F367-80 | Support, Clock | 01 |
|
- | ||||
| 10 | 7403P204-60 | Switch, Push (wht) | 01 |
|
- | ||||
| 10 | WPW10131078 | Nut, Lock (Replaces: 7103P085-60) | 01 |
|
$ 4.00 | ||||
| 11 | 3608F019-70 | Trim, Bkgd. Glass | 01 |
|
- | ||||
| 11 | 7404P061-60 | Thermostat | 01 |
|
- | ||||
| 12 | 3608F019-32 | Retainer, Trim Bkgd | 01 |
|
- |
