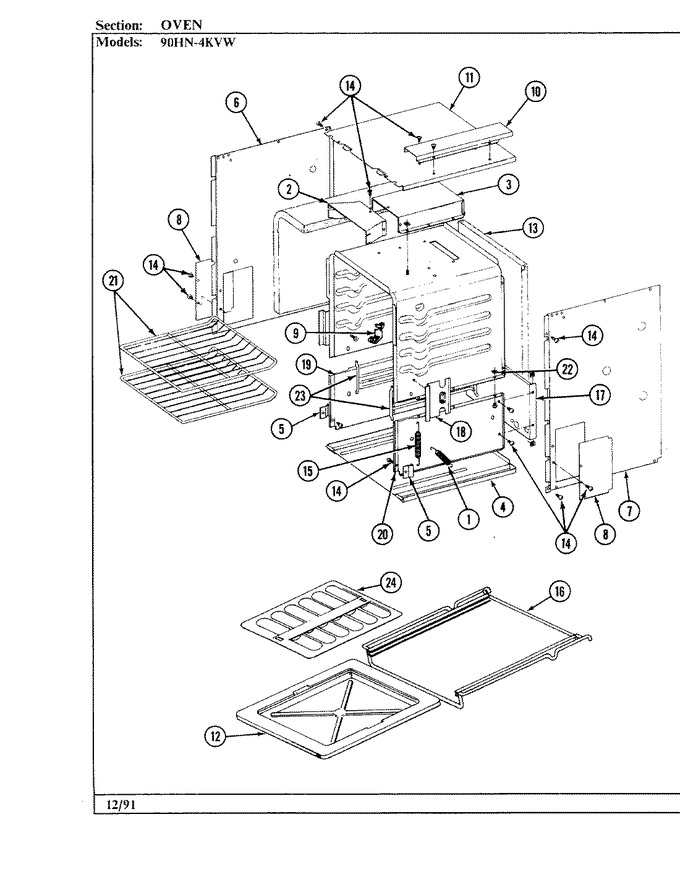

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7803P034-60		Spring, Broiler Door	01	Appelez-nous	-
2	3826F004-80		Extension, Vent Box	01	Appelez-nous	-
3	4006F083-80		Adapter, Vent Box	01	Appelez-nous	-
3	4006W078-51		Box, Vent	01	Appelez-nous	-
4	4003W018-51		Base Assy	01	Appelez-nous	-
5	3801F212-45		Bracket	01	Appelez-nous	-
6	2618F061-51		Panel, End-lt	01	Appelez-nous	-
7	2618F062-51		Panel, End-rt	01	Appelez-nous	-
8	4005F224-51		Cover, Hinge	01	Appelez-nous	-
9	7112P053-60		Clip, Capillary	01	Appelez-nous	-
10	4005F240-51		Cover Wire Top	01	Appelez-nous	-
11	3804F056-51		Cover, Insulation	01	Appelez-nous	-
12	Y3401F02019		Pan, Broil	16	Appelez-nous	-
12	4396923		Pan, Broiler   (Replaces: 3401F015-19)	01		Immediately	$ 52.04
13	7002P089-60		Insulation, Oven Bac	01	Appelez-nous	-
14	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
15	7803P041-60		Spring, Oven Door	01	Appelez-nous	-
16	7801P018-60		Rack, Broiler Pan	01	Appelez-nous	-
17	4002F135-19		Back Broiler	01	Appelez-nous	-
18	3604F119-61		Shield, Insulation	01	Appelez-nous	-
19	2228F003-19		Side Broiler L.t.	01	Appelez-nous	-
20	2228F004-19		Side Broiler Right	01	Appelez-nous	-
21	7801P020-60		Rack, Oven	01	Appelez-nous	-
22	M0282009		Nut 10-24   (Replaces: 7103P071-60)	01			$ 12.06
23	7808P003-60		Runner, Broiler Rack	01	Appelez-nous	-
24	Y3413F01619		Insert, Broil Pan	16	Appelez-nous	-
24	4396923		Insert Pan   (Replaces: 3413F012-19)	01		Immediately	$ 52.04
