Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 790155 Blower Assembly 1 Appelez-nous -
2 790156 Duct Assembly, Magnetron 1 Appelez-nous -
3 790157 Support, Duct Magnetron 1 Appelez-nous -
4 790158 Screw 1 Appelez-nous -
5 790159 Tape, Foam 1 Appelez-nous -
6 790160 Tape, Foam 1 Appelez-nous -
7 790161 Tape, Foam 1 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

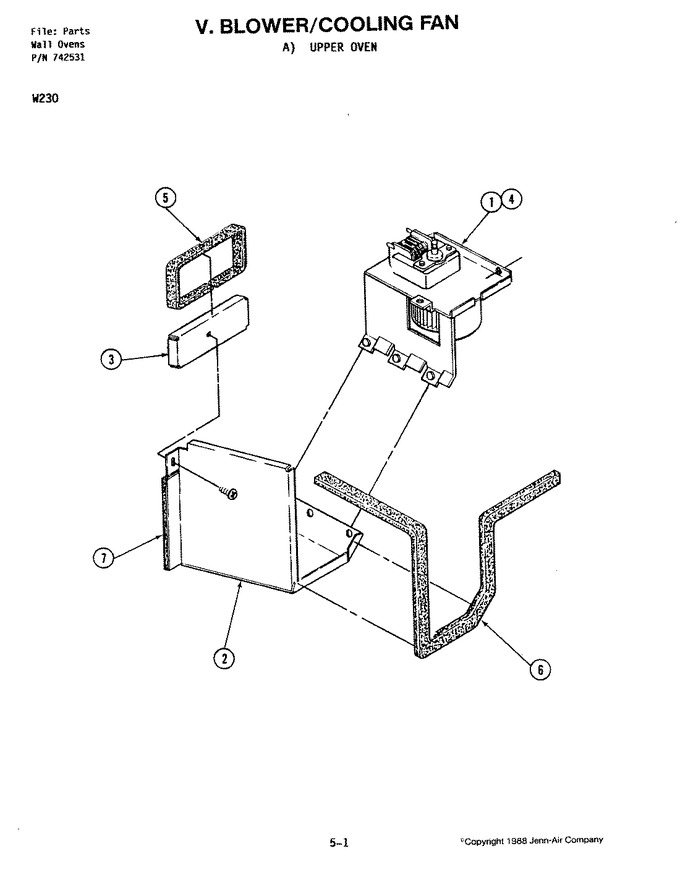

Diagram for W230
