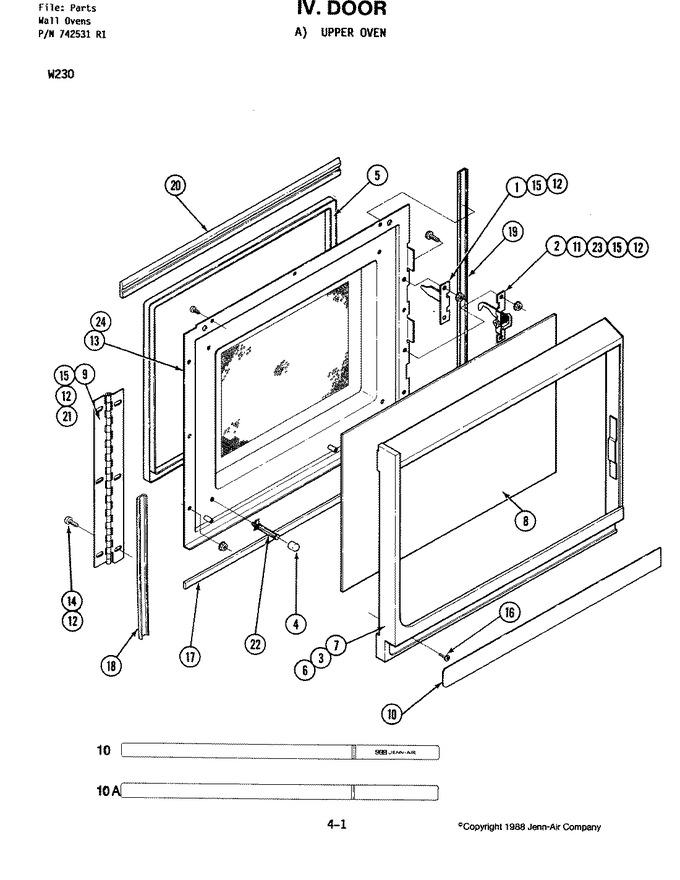

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	790110		Activator, Monitor	1	Appelez-nous	-
2	790111		Bracket, Door Latch	1			$ 101.97
3	790112		Bracket, Door Trim	1	Appelez-nous	-
4	Y790113		Bumper	1	Appelez-nous	-
5	Y790114		Choke-filler	1	Appelez-nous	-
6	790115		Extrusion, Handle	1	Appelez-nous	-
7	790116		Frame-door	1	Appelez-nous	-
8	790117		Glass, Door	1	Appelez-nous	-
9	Y790118		Hinge-door	1	Appelez-nous	-
10	02100105		Insert (no Logo)	1	Appelez-nous	-
10	W10124350		Not Required Part Or See Note	2	Appelez-nous	-
10	790104		Insert (logo)	1	Appelez-nous	-
11	790120		Latch-door	1	Appelez-nous	-
12	790172		Lens, Lamp	2	Appelez-nous	-
12	790121		Nut	1	Appelez-nous	-
13	790122		Panel-inner	1	Appelez-nous	-
14	790123		Screw	1	Appelez-nous	-
15	790124		Screw	1	Appelez-nous	-
16	790125		Screw	1	Appelez-nous	-
17	790126		Seal-bottom	1	Appelez-nous	-
18	790127		Seal, Hinge Side	1	Appelez-nous	-
19	790128		Seal, Latch Side	1	Appelez-nous	-
20	790129		Seal, Top	1	Appelez-nous	-
21	790130		Shim, Door Hinge	1	Appelez-nous	-
22	790131		Spacer, Door Window	1	Appelez-nous	-
23	790133		Tape (double-sided)	1	Appelez-nous	-
23	790132		Spring, Door Latch	1	Appelez-nous	-
24	790134		Window, Polyester	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
