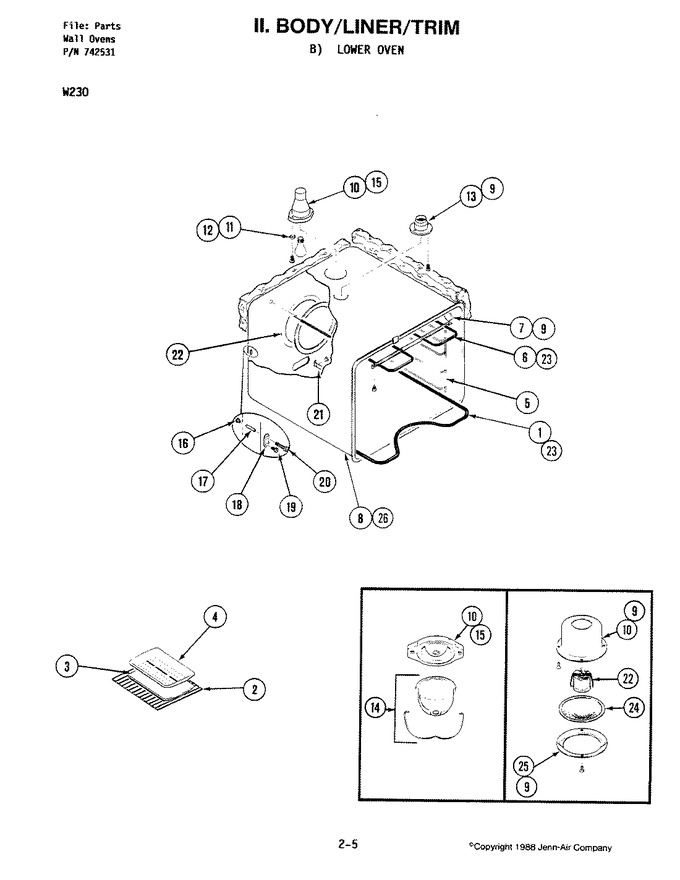

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY04100020		Element, Bake 240v   (Replaces: Y701724)	1		Immediately	$ 136.96
2	Y701725		Rack, Oven	1	Appelez-nous	-
3	4396923		Pan, Broil   (Replaces: 708810)	1		Immediately	$ 52.04
4	4396923		Rack, Broil Pan   (Replaces: Y708811)	1		Immediately	$ 52.04
5	Y701728		Support, Rack	1	Appelez-nous	-
6	WPY04100016		Element, Broil   (Replaces: Y701729)	1			$ 137.21
7	712088		Cover, Meat Probe	1	Appelez-nous	-
8	712237		Liner,oven	1	Appelez-nous	-
8	Y712376		Liner, Oven	2	Appelez-nous	-
9	WP1163283		Screw   (Replaces: Y703741)	1			$ 6.47
10	704142		Receptacle, Holder	2	Appelez-nous	-
10	715281		Receptacle, Light	1	Appelez-nous	-
11	701736		Washer	1	Appelez-nous	-
12	715485		Screw	1	Appelez-nous	-
13	701738		Tube, Vent	1	Appelez-nous	-
14	712282		Light Lens (kit)	1	Appelez-nous	-
15	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	1		Immediately	$ 16.80
16	715294		Nut, Tee	1	Appelez-nous	-
17	701741		Spacer, Oven	1	Appelez-nous	-
18	701742		Plate, Grounding	1	Appelez-nous	-
19	WP71001171		Screw   (Replaces: Y707745)	1			$ 6.26
20	701744		Screw	1	Appelez-nous	-
21	Y701541		Clip, Bulb	1	Appelez-nous	-
22	Y704145		Receptacle, Snap-in	2	Appelez-nous	-
23	WP179051		Screw   (Replaces: 708764)	1		Immediately	$ 7.16
24	Y704143		Lens, Light	2	Appelez-nous	-
25	Y704144		Retainer, Lens	2	Appelez-nous	-
26	701702		Insulation, Wrap	1	Appelez-nous	-
26	Y702618		Clip, Oven	1	Appelez-nous	-
26	701703		Insulation, Rear	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
