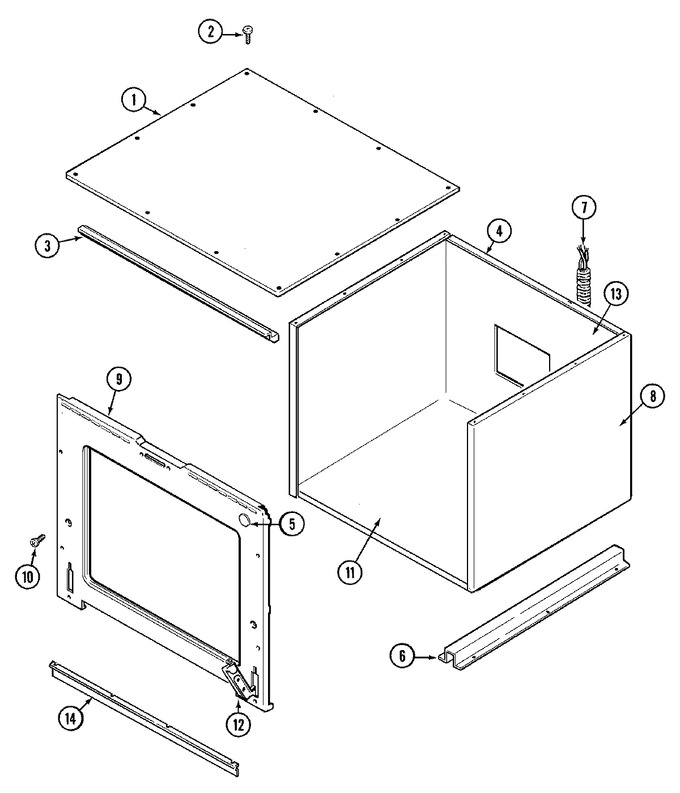

01 - Blower Motor (cooling)
02 - Body
03 - Control Panel
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100616 | Panel, Outer Top | 11 |
|
- | ||||
| 2 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 3 | 04100618 | Bracket, Top Support | 11 |
|
- | ||||
| 4 | 04100564 | Back, Outer | 11 |
|
- | ||||
| 5 | 703688 | Button, Plug | 11 |
|
- | ||||
| 6 | 04100563 | Rail, Support | 11 |
|
- | ||||
| 7 | 71001146 | Wire Cable Assy. (upr) | 11 |
|
- | ||||
| 8 | 71001128 | Panel, Side (lt) | 11 |
|
- | ||||
| 8 | 04100558 | Panel, Side (rh) | 11 |
|
- | ||||
| 9 | 71001220 | Closure, Front | 11 |
|
- | ||||
| 9 | 04100566 | Bracket | 11 |
|
- | ||||
| 10 | W11233072 | Screw (Replaces: Y708733) | 11 |
|
Immediately | $ 12.62 | |||
| 11 | 04100621 | Panel, Bottom | 11 |
|
- | ||||
| 12 | WP74003976 | Washer (Replaces: 702592) | 11 |
|
$ 6.47 | ||||
| 12 | Y703449 | Washer | 11 |
|
- | ||||
| 12 | WP71001171 | Screw (Replaces: Y707745) | 11 |
|
$ 6.26 | ||||
| 12 | Y04100337 | Hinge, Oven Door | 11 |
|
- | ||||
| 12 | 04100577 | Backplate, Hinge | 11 |
|
- | ||||
| 13 | 04100568 | Insulation, Bottom | 11 |
|
- | ||||
| 13 | 04100819 | Insulation | 11 |
|
- | ||||
| 13 | 04100565 | Insulation Wrap | 11 |
|
- | ||||
| 13 | 04100620 | Back, Inner | 11 |
|
- | ||||
| 14 | 04100625 | Trim (wht) |
|
- | |||||
| 14 | 702336 | Angle, Oven Support | 11 |
|
- |
