01 - Blower Motor (cooling)
02 - Body
03 - Control Panel
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

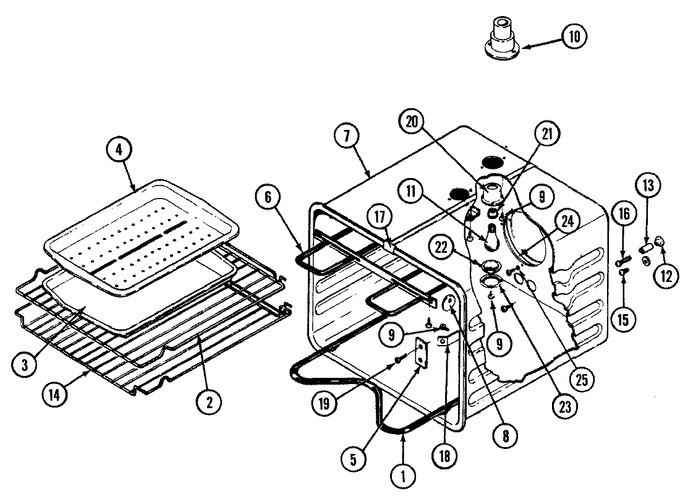

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPY04100388 | Element, Bake (Replaces: Y04100388) | 11 |
|
$ 134.59 | ||||
| 2 | Y704661 | Rack, Oven | 11 |
|
- | ||||
| 3 | 4396923 | Pan, Broil (Replaces: 703164) | 11 |
|
Immediately | $ 52.04 | |||
| 4 | 4396923 | Insert, Broil Pan (Replaces: 703165) | 11 |
|
Immediately | $ 52.04 | |||
| 5 | Y705342 | Cover, Sensor Hole | 11 |
|
- | ||||
| 6 | WPY04100514 | Element, Broil (Replaces: Y04100514) | 11 |
|
$ 138.97 | ||||
| 7 | 71003059 | Oven Liner Assy. | 13 |
|
- | ||||
| 7 | Y04100817 | Oven Weld Assy. | 11 |
|
- | ||||
| 8 | 702929 | Button, Plug | 11 |
|
- | ||||
| 9 | WP1163283 | Screw (Replaces: Y04100134) | 11 |
|
$ 6.47 | ||||
| 10 | 701738 | Tube, Vent | 11 |
|
- | ||||
| 11 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) | 11 |
|
Immediately | $ 16.80 | |||
| 12 | 715294 | Nut, Tee | 11 |
|
- | ||||
| 13 | 04100569 | Spacer | 11 |
|
- | ||||
| 14 | Y704663 | Rack, Oven (offset) | 11 |
|
- | ||||
| 15 | WP71001171 | Screw (Replaces: Y707745) | 11 |
|
$ 6.26 | ||||
| 16 | 705170 | Screw | 11 |
|
- | ||||
| 16 | 701736 | Washer | 11 |
|
- | ||||
| 17 | 71001170 | Clip, Oven | 11 |
|
- | ||||
| 18 | Y701541 | Clip, Bulb | 11 |
|
- | ||||
| 19 | WP179051 | Screw (Replaces: 708764) | 11 |
|
Immediately | $ 7.16 | |||
| 20 | 704142 | Receptacle, Holder | 11 |
|
- | ||||
| 21 | Y704145 | Receptacle, Snap-in | 11 |
|
- | ||||
| 22 | Y704143 | Lens, Light | 11 |
|
- | ||||
| 23 | Y704144 | Retainer, Lens | 11 |
|
- | ||||
| 24 | 71002903 | Plate, Non-convect | 13 |
|
- | ||||
| 24 | 705343 | Plate, Non-convect | 11 |
|
- | ||||
| 25 | WP74003976 | Washer (Replaces: 702592) | 11 |
|
$ 6.47 |
