SELECT A DIAGRAM
01 - Blower Motor (cooling)
02 - Body
03 - Control Panel
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

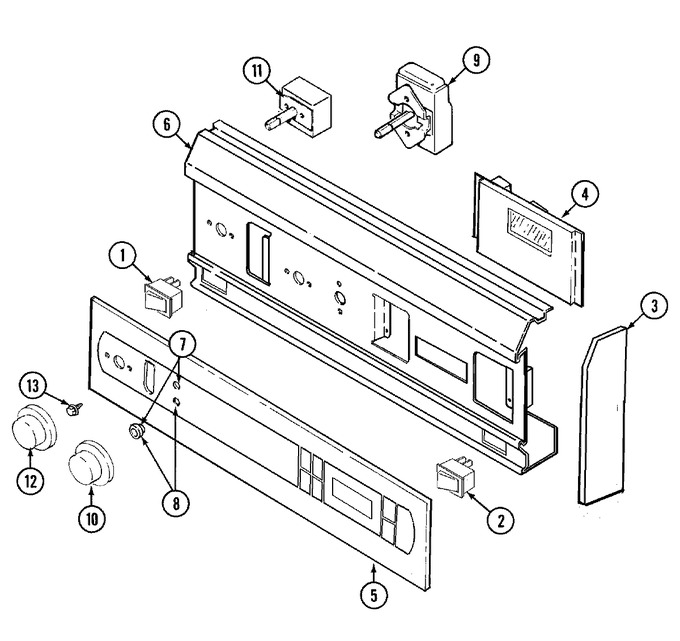

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001131 | Switch, Momentary (wht) | 11 |
|
- | ||||
| 2 | 71001130 | Switch, Oven Light (wht) | 11 |
|
- | ||||
| 3 | 705014 | Cap, End (lt/wht) | 11 |
|
- | ||||
| 3 | 705015 | Cap, End (rt/wht) | 11 |
|
- | ||||
| 4 | 71001097 | Clock | 11 |
|
- | ||||
| 5 | 71001221 | Insert, Panel Assy. (wht) | 11 |
|
- | ||||
| 6 | 71001222 | Panel, Control Assy. (wht) | 11 |
|
- | ||||
| 7 | 71001140 | Light, Indicator | 11 |
|
- | ||||
| 8 | 71001301 | Light, Lock | 11 |
|
- | ||||
| 9 | 71001138 | Thermostat | 11 |
|
- | ||||
| 10 | Y704482 | Knob, Thermostat (wht) | 11 |
|
- | ||||
| 10 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 11 | 71001139 | Switch, Selector (lwr) | 11 |
|
- | ||||
| 12 | WPY704841 | Knob, Selector (wht) (Replaces: Y04100031) | 11 |
|
$ 40.37 | ||||
| 13 | 71001141 | Harness, Control (upr) | 11 |
|
- | ||||
| 13 | 71001124 | Switch, Auxiliary | 11 |
|
- | ||||
| 13 | 71002058 | Screw, 8-32 (Replaces: Y04100363) | 11 |
|
$ 5.82 | ||||
| 14 | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- | ||||
| 14 | 71001408 | Manual, Use & Care | 11 |
|
- |
