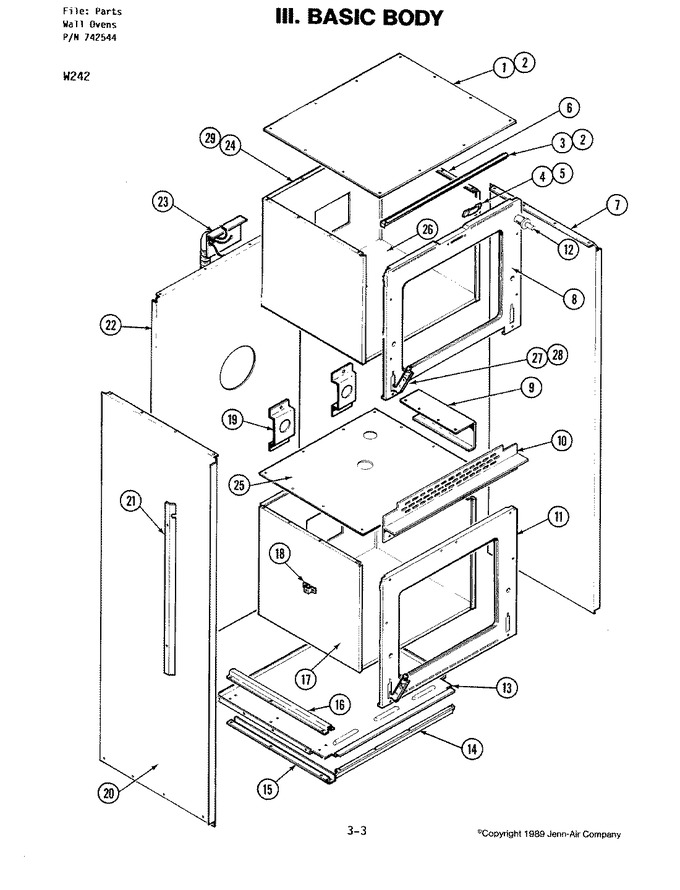

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701681		Top (outer)	1	Appelez-nous	-
2	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
3	703095		Support, Top	1	Appelez-nous	-
4	701680		Bracket, Vent Tube	1	Appelez-nous	-
5	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 7.04
6	701676		Panel, Side (rt)	1	Appelez-nous	-
7	703098		Panel, Outer (rt)	1	Appelez-nous	-
8	703254		Closure, Front (upper)	1	Appelez-nous	-
9	DE81-06242A		Spacer, Side   (Replaces: 703253)	1			$ 284.36
10	703074		Extrusion, Center	1	Appelez-nous	-
11	703255		Closure, Front (lower)	1	Appelez-nous	-
12	701666		Switch, Door	1	Appelez-nous	-
13	701668		Panel, Bottom (outer)	1	Appelez-nous	-
14	701848		Trim, Oven (lower)	1	Appelez-nous	-
15	700596		Rail, Bottom	1	Appelez-nous	-
16	DE81-06547A		Support, Bottom   (Replaces: 701667)	1			$ 163.64
17	DE81-09195A		Panel, Side (lt)   (Replaces: 701697)	1			$ 779.04
18	712072		Bracket, Hat (side)	1	Appelez-nous	-
19	703252		Spacer, Rear (lower Oven)	1	Appelez-nous	-
20	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
20	Y700556		Clip, J	1	Appelez-nous	-
20	703099		Panel, Outer (lt)	1	Appelez-nous	-
21	703251		Shield, Capillary Tube	1	Appelez-nous	-
22	DE81-04658A		Panel, Outer (rear)   (Replaces: 703097)	1			$ 186.44
23	712185		Assy., Wire Cable	1	Appelez-nous	-
24	704808		Panel, Rear	1	Appelez-nous	-
25	704684		Panel, Top	1	Appelez-nous	-
26	701701		Angle, Oven Support	1	Appelez-nous	-
26	DE81-07471A		Panel, Bottom   (Replaces: 701669)	1			$ 320.80
27	Y703419		Hinge	1	Appelez-nous	-
28	WP3196183		Screw   (Replaces: Y701664)	1		Immediately	$ 6.98
28	701683		Bracket, Hat (rear)	1	Appelez-nous	-
29	Y703352		Grommet, Flexible	1	Appelez-nous	-
