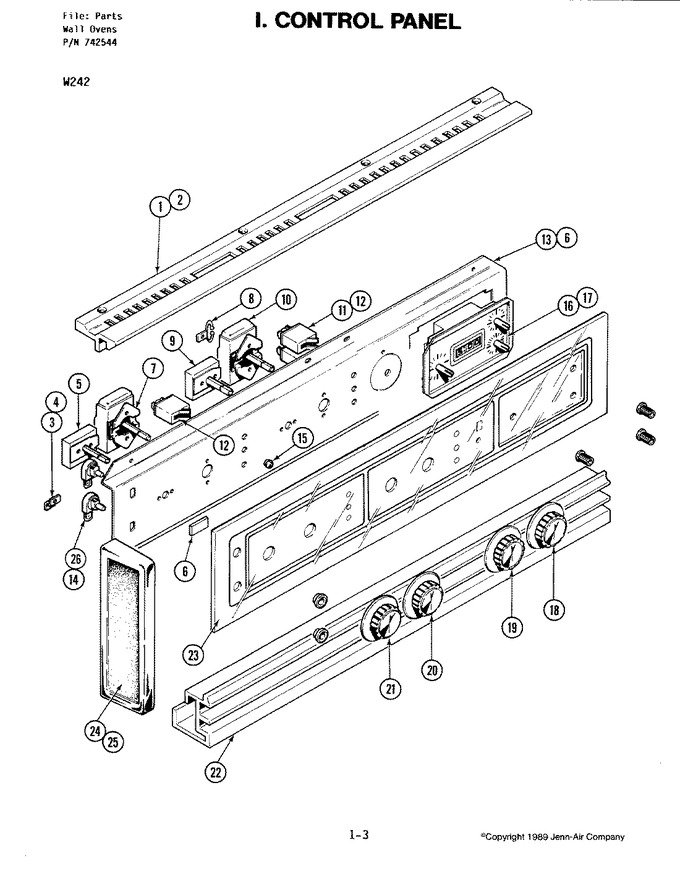

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	703072		Extrusion, Top	1	Appelez-nous	-
2	712066		Screw	1	Appelez-nous	-
3	701609		Angle, Attachment	1	Appelez-nous	-
4	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
5	703078		Switch, Selector (upper)	1	Appelez-nous	-
6	DE81-03511A		Pad, Spacer   (Replaces: 701618)	1		Immediately	$ 138.07
7	703082		Thermostat, Lower Oven	1	Appelez-nous	-
8	WPW10339879		Tie, Cable   (Replaces: Y702105)	1			$ 7.11
8	702746		Tie, Mount Cable	1	Appelez-nous	-
9	703077		Switch, Selector Upper	1	Appelez-nous	-
10	703080		Thermostat-upper	1	Appelez-nous	-
11	Y702394		Light, Indicator 240v	1	Appelez-nous	-
12	Y702393		Light, Indicator-120v	1	Appelez-nous	-
13	703070		Panel, Control	1	Appelez-nous	-
14	701610		Bezel, Switch	1	Appelez-nous	-
15	Y700630		Lens, Indicator Lights	1			$ 4.18
16	701633		Clock	1	Appelez-nous	-
17	Y702547		Knob, Clock	1	Appelez-nous	-
18	WPY703499		Knob, Thermostat   (Replaces: Y703499)	1			$ 43.52
19	DE81-06568A		Knob, Selector-upper   (Replaces: 703502)	1			$ 163.11
20	DE81-06946A		Knob, Thermostat   (Replaces: 703498)	1			$ 261.98
21	12200031		Knob, Selector-lower   (Replaces: Y703501)	1			$ 60.55
22	703073		Extrusion, Bottom	1	Appelez-nous	-
23	703071		Glass	1	Appelez-nous	-
24	701619		Cap, End (rt)	1	Appelez-nous	-
25	701635		Cap, End (lt)	1	Appelez-nous	-
26	703084		Harness, Wire	1	Appelez-nous	-
26	700558		Switch, Light (push)	1	Appelez-nous	-
26	703086		Harness, Wire	1	Appelez-nous	-
26	DE81-09159A		Wire, Wire   (Replaces: 703370)	1			$ 313.88
26	703267		Wire, Resistor	1	Appelez-nous	-
26	DE81-04412A		Wire, Pink   (Replaces: 703090)	1			$ 327.97
26	703089		Wire, Tan	1	Appelez-nous	-
