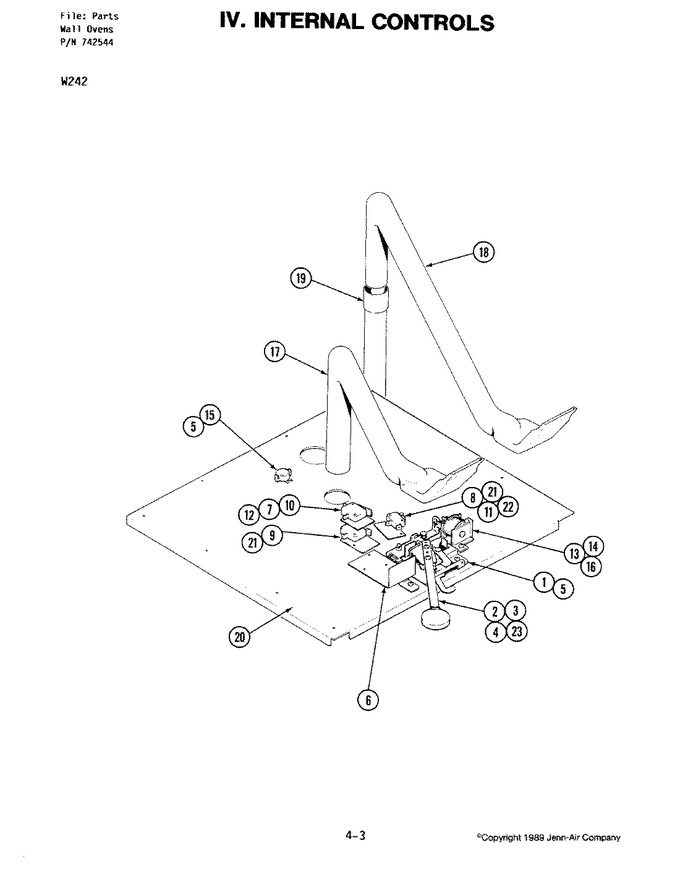

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Fans (convection)
05 - Fans (cooling)
06 - Internal Controls
07 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y703357 | Latch Assy. | 1 |
|
- | ||||
| 2 | Y704240 | Lever, Latch (blk) | 1 |
|
- | ||||
| 3 | 701670 | Knob, Lever | 1 |
|
- | ||||
| 4 | 701671 | Spring, Knob | 1 |
|
- | ||||
| 5 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 6 | 701706 | Shield, Switch | 1 |
|
- | ||||
| 7 | 703264 | Insulator | 1 |
|
- | ||||
| 8 | Y702360 | Switch, Solenoid | 1 |
|
- | ||||
| 9 | 702805 | Switch, Door | 1 |
|
- | ||||
| 10 | 702806 | Switch, Door | 1 |
|
- | ||||
| 11 | DE81-04441A | Screw (Replaces: 702380) | 1 |
|
$ 329.62 | ||||
| 12 | 702807 | Screw | 1 |
|
- | ||||
| 13 | Y702526 | Solenoid | 1 |
|
- | ||||
| 14 | Y701686 | Pin, Cotter | 1 |
|
- | ||||
| 15 | 701687 | Thermostat | 1 |
|
- | ||||
| 15 | 703259 | Limit, Thermostat | 1 |
|
- | ||||
| 16 | 703767 | Wire, Gray | 1 |
|
- | ||||
| 17 | 703066 | Tube, Vent Offset (upper) | 1 |
|
- | ||||
| 18 | 703067 | Tube, Vent-top (upper) | 1 |
|
- | ||||
| 19 | 705096 | Tube, Vent Bottom | 1 |
|
- | ||||
| 20 | 704684 | Panel, Top | 1 |
|
- | ||||
| 21 | Y702350 | Insulator | 1 |
|
- | ||||
| 22 | Y703351 | Switch, Latch-top Front | 1 |
|
- | ||||
| 23 | 707407 | Screw | 1 |
|
$ 6.42 |
