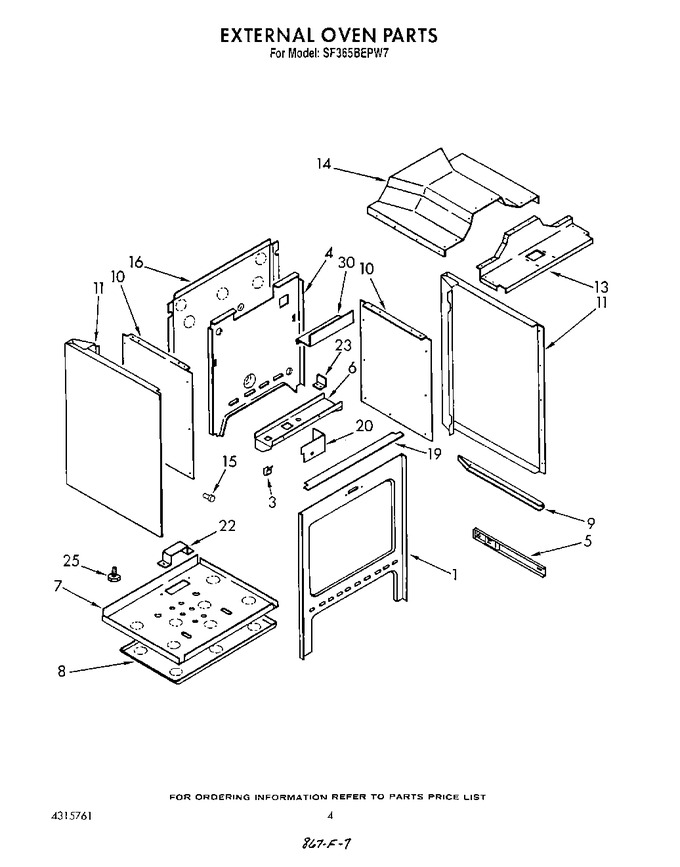

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP965173		Frame, Front Non Servicable (screw (10))   (Replaces: 786223)			Immediately	$ 9.65
3	786780		Bushing, Snap		Appelez-nous	-
4	4315784		Retainer, Insulation		Appelez-nous	-
5	4315768		Track, Storage Drawer (right Side)		Appelez-nous	-
5	786527		Track, Storage Drawer (rivet, Plastic (2))		Appelez-nous	-
5	4315769		Track, Storage Drawer (left Side)		Appelez-nous	-
6	4315767		Shelf, Gas Valve		Appelez-nous	-
7	WP965173		Screw, 8 X 3/8 (9)   (Replaces: 786745)			Immediately	$ 9.65
7	4315770		Retainer, Bottom Insulation		Appelez-nous	-
8	786364		Heat Shield, Storage Drawer		Appelez-nous	-
9	4315782		Brace, Bottom (left Side)		Appelez-nous	-
9	4315781		Brace, Bottom (right Side)		Appelez-nous	-
10	4315771		Retainer, Insulation Side		Appelez-nous	-
11	4315765		Panel, End (2) (almond)		Appelez-nous	-
11	4315766		Panel, End (2) (white)		Appelez-nous	-
13	4315677		Retainer, Top Front Insulation		Appelez-nous	-
14	4315676		Retainer, Top Back Insulation		Appelez-nous	-
15	786750		Bushing, Snap		Appelez-nous	-
16	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 786745)			Immediately	$ 9.65
16	4315785		Rear Panel,		Appelez-nous	-
16	WP488130		Nut (4)   (Replaces: 786272)				$ 6.27
16	786748		Nut, 6-32		Appelez-nous	-
16	WP486754		Screw, 6-32 X 1/4   (Replaces: 786749)				$ 6.75
19	4315775		Frame, Filler Front		Appelez-nous	-
20	4315776		Cover, Gas Valve		Appelez-nous	-
22	786388		Cover, Burner		Appelez-nous	-
23	4315678		Bracket, Gas Valve (2)		Appelez-nous	-
25	4315777		Leg, Leveling (4)		Appelez-nous	-
30	4315779		Cover, Electrical		Appelez-nous	-
