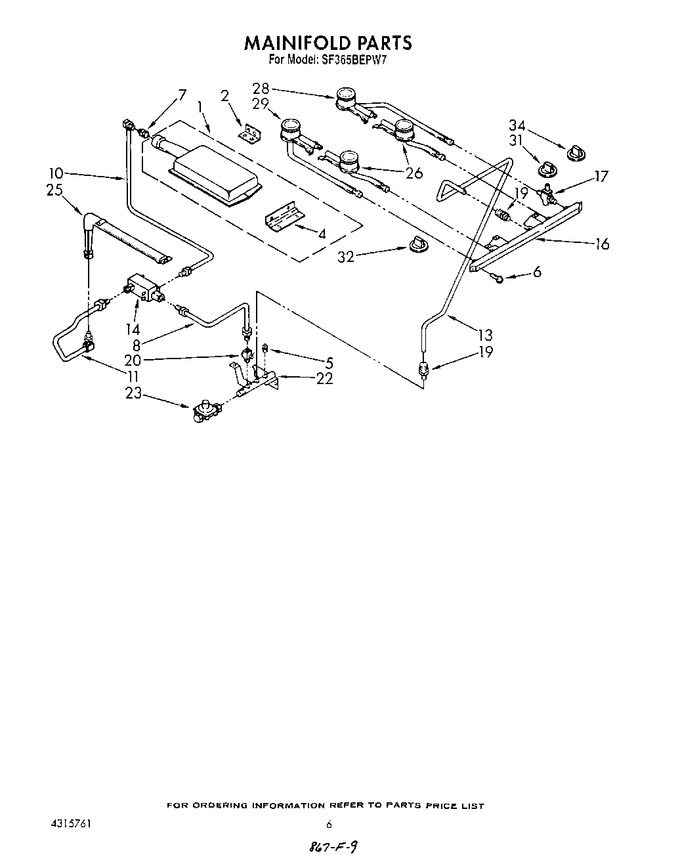

04 - Manifold


05 - Oven Electrical


06 - Oven Door And Drawer


07 - Backguard , Lit/optional


08 - Cook Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4179233		Burner, Ultra Ray Broiler		Appelez-nous	-
2	786753		Nut (6)		Appelez-nous	-
2	786543		Mounting Bracket, Ignitor		Appelez-nous	-
4	4179235		Bracket, Burner		Appelez-nous	-
5	W10295523		Pipe Plug, 1/8 Npt   (Replaces: 786545)		Appelez-nous	-
6	4179116		Screw, Valve Mounting		Appelez-nous	-
7	786309		Spud, Orifice (lp Gas No. 58)		Appelez-nous	-
7	786308		Spud, Orifice (natural Gas No. 50)		Appelez-nous	-
8	4320314		Tubing, (inlet To Gas Valve)		Appelez-nous	-
10	4320312		Orifice & Tubing Assembly (gas Valve To Ulta Ray Burner)		Appelez-nous	-
11	4320315		Hood & Tubing Assembly (gas Valve To Lower Oven Burner)		Appelez-nous	-
13	4320313		Tubing (inlet To Manifold)		Appelez-nous	-
14	4320316		Valve, Dual Gas Valve		Appelez-nous	-
16	4320317		Manifold		Appelez-nous	-
17	4320318		Valve, Top Burner (4)		Appelez-nous	-
19	4320319		Fitting		Appelez-nous	-
20	4320320		Valve, Shut-off		Appelez-nous	-
22	4320321		Inlet, Pipe		Appelez-nous	-
23	786313		Regulator, Pressure		Appelez-nous	-
25	786314		Oven Burner, Lower		Appelez-nous	-
26	786315		Top Burner, Front (2)		Appelez-nous	-
28	786316		Top Burner, R.r.		Appelez-nous	-
29	786317		Top Burner, L.r.		Appelez-nous	-
31	786559		Knob, Top Burner (4)		Appelez-nous	-
32	4179070		Knob, Oven Control		Appelez-nous	-
34	786562		Knob, Selector		Appelez-nous	-
