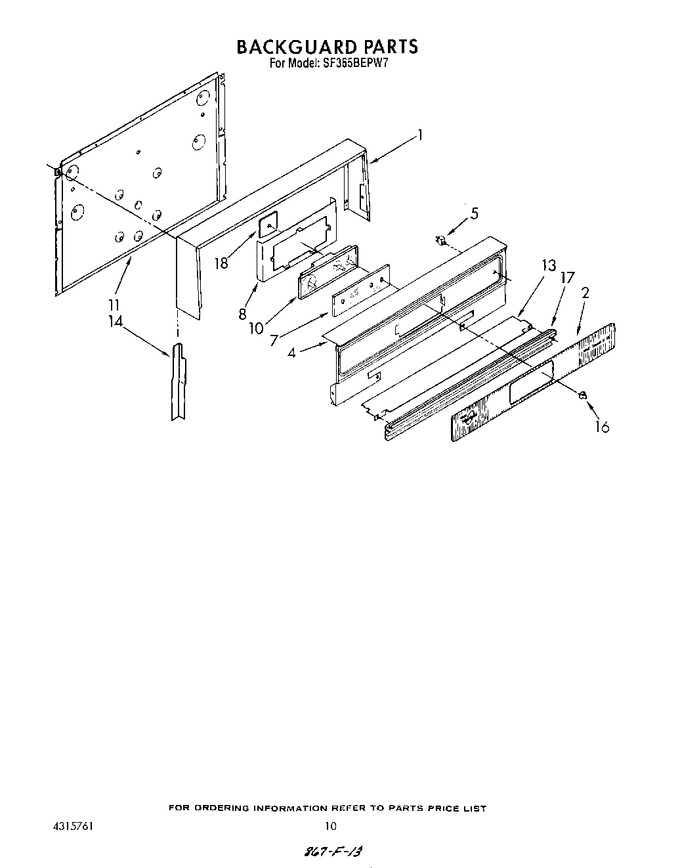

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786444		Frame		Appelez-nous	-
1	786761		Screw (4)		Appelez-nous	-
2	4179093		Panel, Inlay		Appelez-nous	-
4	786450		Panel, Control (almond)		Appelez-nous	-
4	786451		Panel, Control (white)		Appelez-nous	-
5	786306		Light, Indicator		Appelez-nous	-
7	786453		Glass, Timer		Appelez-nous	-
8	786454		Bracket, Timer		Appelez-nous	-
10	4314918		Timer		Appelez-nous	-
11	4315785		Cover, Rear		Appelez-nous	-
13	786456		Shield, Heat		Appelez-nous	-
14	4315796		Support, Backguard (left Side)		Appelez-nous	-
14	4315795		Support, Backguard (right Side)		Appelez-nous	-
16	786434		Knob, Timer (3)		Appelez-nous	-
17	786694		Trim, Lower		Appelez-nous	-
18	4315034		Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
