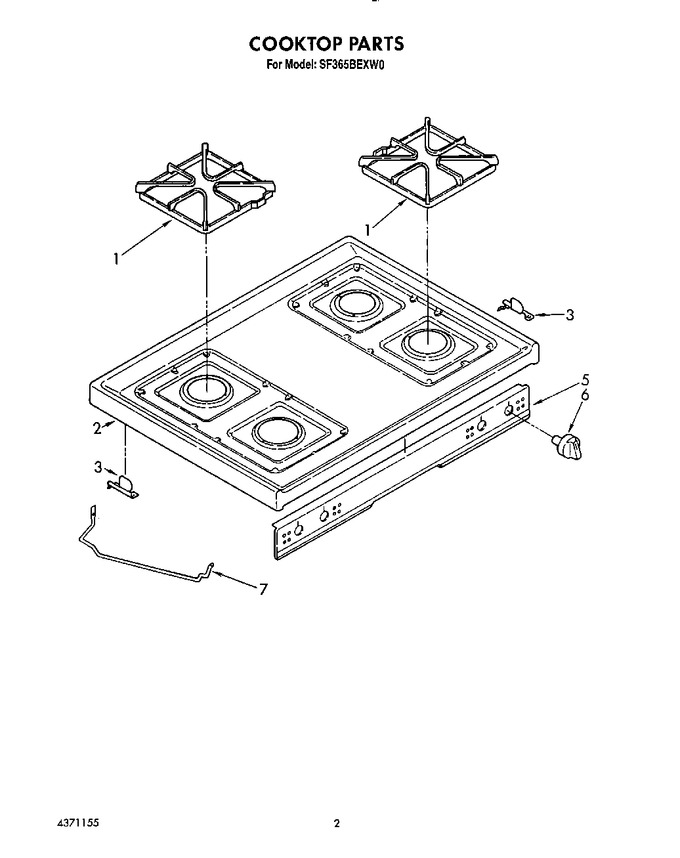

02 - Cooktop


03 - Broiler & Oven Burner


04 - Cooktop Burner


05 - Control Panel


06 - Oven


07 - Oven Rack, Lit/optional


08 - Oven Door And Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4371034		Grate		Appelez-nous	-
2	4371064		Top, Main (white)		Appelez-nous	-
2	4371065		Top, Main (almond)		Appelez-nous	-
3	816721		Bracket, Hinges (right Side)		Appelez-nous	-
3	816586		Bracket, Hinges (left Side)		Appelez-nous	-
5	816643		Panel, Manifold		Appelez-nous	-
6	816632		Knob, Control (4)		Appelez-nous	-
7	4371039		Rod, Support Top		Appelez-nous	-
