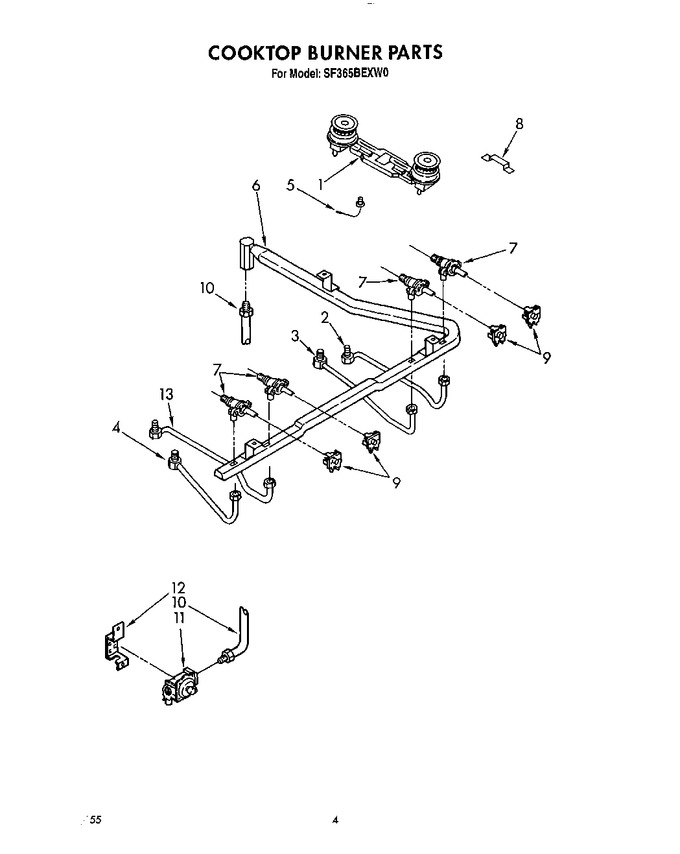

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4371020		Burner, Double		Appelez-nous	-
2	4371021		Tubing, Burner (rf)		Appelez-nous	-
3	4371023		Tubing, Burner (rr)		Appelez-nous	-
4	4371022		Tubing, Burner (lf)		Appelez-nous	-
5	4371017		Ignitor, Top Burner (2)		Appelez-nous	-
6	4371026		Pipe, Manifold		Appelez-nous	-
7	4371028		Valve, Top Burner (4)		Appelez-nous	-
8	4371019		Bracket, Burner Mounting		Appelez-nous	-
9	4371014		Switch, Ignitor (4)		Appelez-nous	-
10	816691		Tubing, Regulator To Manifold Pipe		Appelez-nous	-
11	4371032		Control, Regulator		Appelez-nous	-
12	816636		Bracket, Regulator		Appelez-nous	-
13	4371024		Tubing, Burner (lr)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
