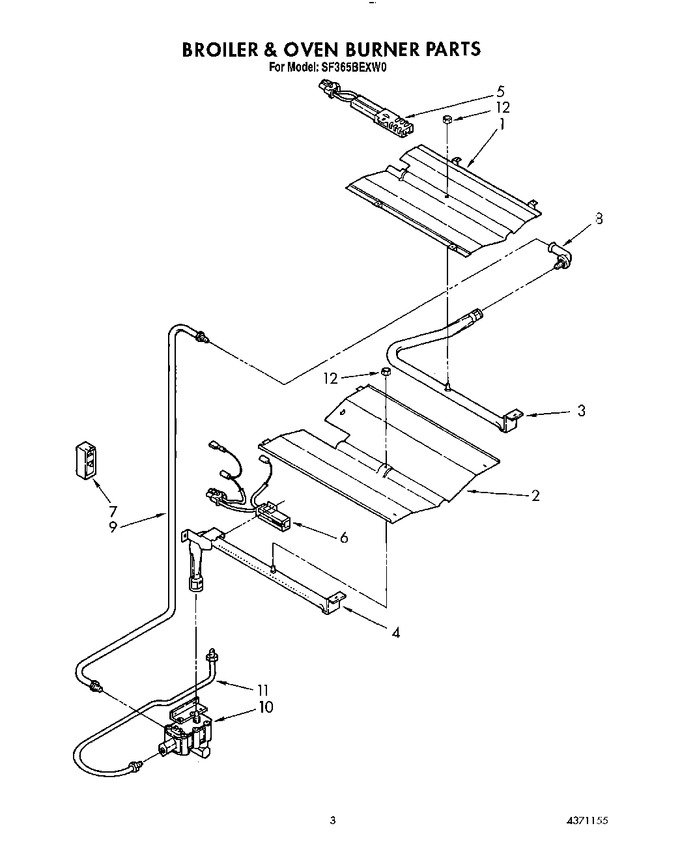

03 - Broiler & Oven Burner
04 - Cooktop Burner
05 - Control Panel
06 - Oven
07 - Oven Rack, Lit/optional
08 - Oven Door And Drawer
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 816582 | Baffle, Broiler Burner |
|
- | |||||
| 2 | 816584 | Baffle, Oven Burner |
|
- | |||||
| 3 | 816722 | Burner, Broiler |
|
- | |||||
| 4 | 816588 | Burner, Oven |
|
- | |||||
| 5 | 816624 | Ignitor, Broiler Burner |
|
- | |||||
| 6 | 814269 | Ignitor, Oven Burner (Replaces: 816625) |
|
$ 184.01 | |||||
| 7 | 4371030 | Module, Spark |
|
- | |||||
| 8 | 816594 | Mixer, Elbow |
|
- | |||||
| 9 | 816689 | Tubing, Valve To Mixing Elbow |
|
- | |||||
| 10 | 816692 | Valve, Dual |
|
- | |||||
| 11 | 816690 | Tubing, Valve To Regulator |
|
- | |||||
| 12 | 816642 | Nut, Hex (2) |
|
- |
