01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

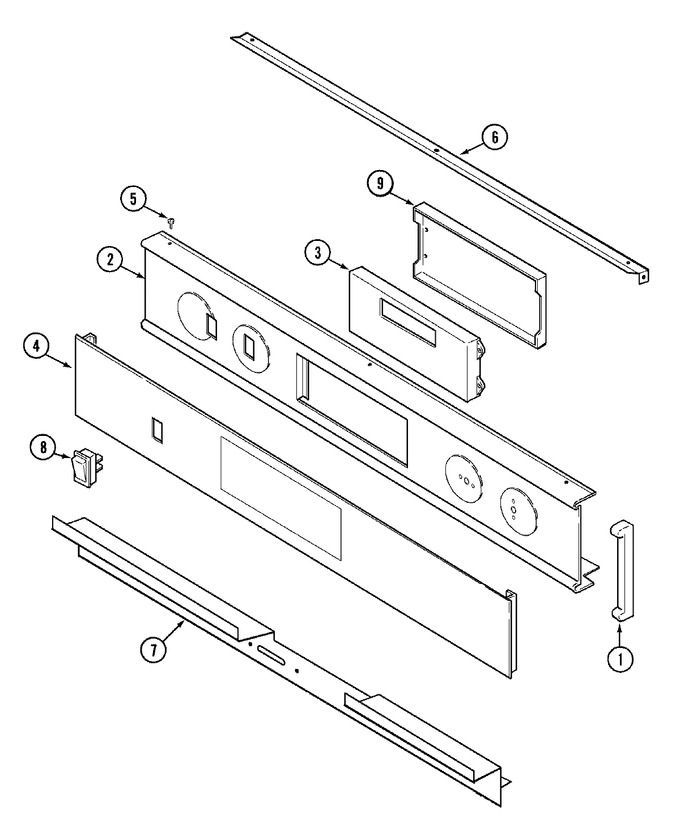

| 1 | 71001795 | End Cap, Panel (wht) | 11 |
|
- | ||||
| 2 | 71002122 | Panel, Control (wht) | 11 |
|
- | ||||
| 3 | 71002215CP | Clock (Replaces: 71002215) | 11 |
|
- | ||||
| 4 | 71002229 | Switch, Membrane (wht) | 11 |
|
- | ||||
| 5 | Y04100724 | Screw (wht) | 11 |
|
- | ||||
| 6 | 71001945 | Support, Control Panel | 11 |
|
- | ||||
| 7 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 11 |
|
Immediately | $ 12.62 | |||
| 7 | 71001946 | Trim, Control Panel (blk) | 11 |
|
- | ||||
| 8 | 71002137 | Switch, Oven Light (wht) | 11 |
|
- | ||||
| 9 | 71002139 | Bracket, Clock | 11 |
|
- | ||||
| 9 | Y705143 | Insulator | 11 |
|
- | ||||
| 10 | 71002130 | Harness, Relay Board | 11 |
|
- | ||||
| 11 | 71002216 | Manual, Use & Care | 11 |
|
- | ||||
| 12 | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- |
