SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

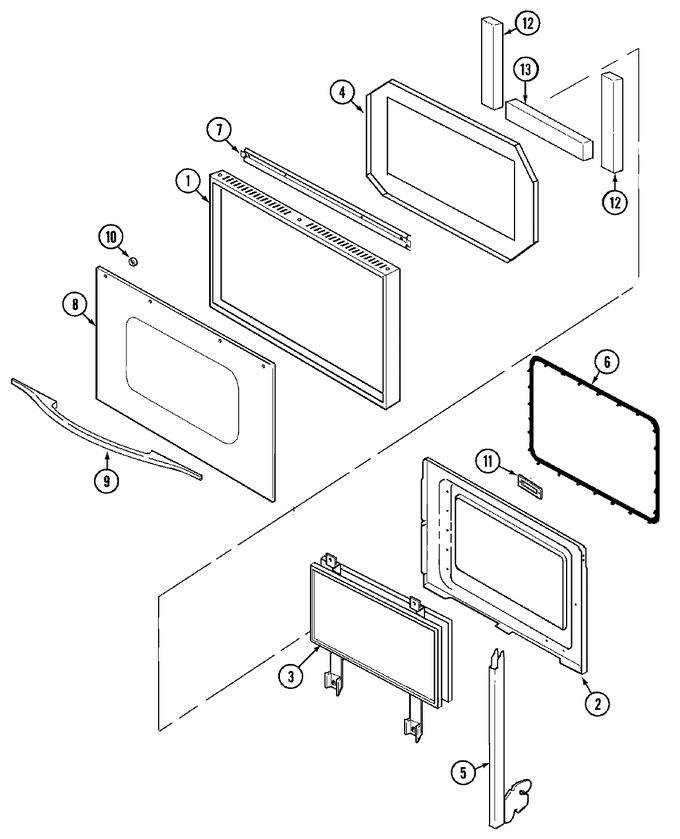

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001965 | Frame, Door (wht) | 11 |
|
- | ||||
| 1 | 71001827 | Screw | 11 |
|
- | ||||
| 2 | 71001966 | Liner, Oven Door | 11 |
|
- | ||||
| 2 | 71002968 | Liner, Oven Door | 12 |
|
- | ||||
| 3 | WP7902P444-60 | Window Assembly (Replaces: 71001967) | 11 |
|
$ 147.26 | ||||
| 4 | 71001968 | Retainer, Insulation | 11 |
|
- | ||||
| 5 | WP74008014 | Hinge, Door (Replaces: 71001832) | 11 |
|
Immediately | $ 129.55 | |||
| 6 | WP71001970 | Seal, Door (Replaces: 71001970) | 11 |
|
$ 156.50 | ||||
| 7 | 71001971 | Gusset | 11 |
|
- | ||||
| 8 | 71001973 | Glass, Door (wht) | 11 |
|
- | ||||
| 9 | 71001975 | Handle, Door (wht) | 11 |
|
- | ||||
| 10 | WP3400029 | Nut (Replaces: 715634) | 11 |
|
Immediately | $ 6.98 | |||
| 10 | WP355214 | Screw (Replaces: Y700725) | 11 |
|
Immediately | $ 7.26 | |||
| 11 | 71001831 | Plate, Latch | 11 |
|
- | ||||
| 12 | 71001839 | Insulation, Door (side) | 11 |
|
- | ||||
| 13 | 71001969 | Insulation, Door (btm) | 11 |
|
- |
