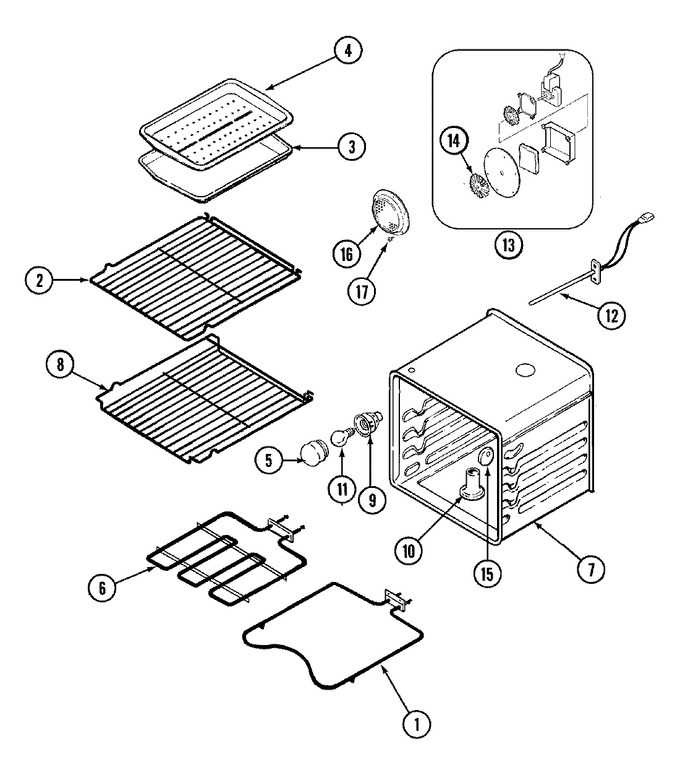

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7406P272-60 | Element, Bake (Replaces: 71001636) | 11 |
|
$ 158.68 | ||||
| 2 | Y704660 | Rack, Oven | 11 |
|
$ 104.03 | ||||
| 3 | 4396923 | Pan, Broil (Replaces: 703164) | 11 |
|
Immediately | $ 52.04 | |||
| 4 | 4396923 | Insert, Broil Pan (Replaces: 703165) | 11 |
|
Immediately | $ 52.04 | |||
| 5 | WP9781049 | Lens, Bulb (Replaces: 71001867) | 11 |
|
Immediately | $ 71.93 | |||
| 6 | 71001637 | Element, Broil | 11 |
|
- | ||||
| 7 | WP7101P434-60 | Screw (Replaces: 71001394) | 11 |
|
$ 6.26 | ||||
| 7 | 71001978 | Oven Weld Assy. | 11 |
|
- | ||||
| 7 | 71003006 | Oven Weld Assy. | 12 |
|
- | ||||
| 7 | 71001403 | Washer, Alum | 11 |
|
- | ||||
| 8 | Y704662 | Rack, Oven (offset) | 11 |
|
- | ||||
| 9 | 71001866 | Receptacle, Bulb | 11 |
|
- | ||||
| 10 | 71001864 | Tube, Vent | 11 |
|
- | ||||
| 11 | 71001170 | Clip, Oven | 11 |
|
- | ||||
| 11 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) | 11 |
|
Immediately | $ 16.80 | |||
| 12 | 12001656 | Sensor, Oven (Replaces: Y704657) | 11 |
|
Immediately | $ 39.55 | |||
| 13 | 71001858 | Convection Mtr Assy | 11 |
|
$ 148.33 | ||||
| 14 | 71001855 | Wheel, Convect Assy. | 11 |
|
- | ||||
| 15 | 702929 | Button, Plug | 11 |
|
- | ||||
| 16 | 71001947 | Plate, Convection (frt) | 11 |
|
- | ||||
| 17 | WP7101P434-60 | Screw (Replaces: 71001394) | 11 |
|
$ 6.26 |
