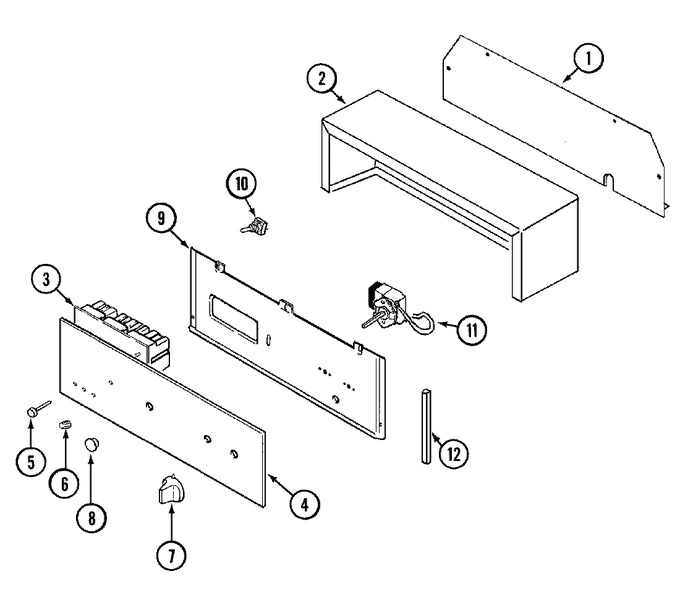

01 - Body-rear
02 - Broiler Drawer (9112wp)
03 - Control Panel
04 - Door (9112wp)
05 - Gas Controls
06 - Oven
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F098-51 | Back Control Box | 01 |
|
- | ||||
| 2 | 4006F057-51 | Box Control | 01 |
|
- | ||||
| 3 | 7602P097-60 | Clock | 01 |
|
- | ||||
| 4 | 7912P045-60 | Glass, Control Panel | 01 |
|
- | ||||
| 5 | 7711P171-60 | Knob, Clock (button-blk) | 01 |
|
$ 19.90 | ||||
| 6 | 7711P172-60 | Knob, Clock (blk) | 01 |
|
$ 23.55 | ||||
| 7 | 7711P350-60 | Knob, Control (chr) | 01 |
|
- | ||||
| 7 | 7711P291-60 | Knob (chr) | 13 |
|
- | ||||
| 8 | 7214P007-60 | Sleeve, Switch (blk) | 01 |
|
- | ||||
| 9 | 3807F367-80 | Support, Clock | 01 |
|
- | ||||
| 10 | WPW10131078 | Nut, Lock (Replaces: 7103P085-60) | 01 |
|
$ 4.00 | ||||
| 10 | 7403P109-60 | Switch, Push (blk) | 01 |
|
- | ||||
| 11 | 7404P099-60 | Thermostat | 11 |
|
- | ||||
| 11 | 7404P101-60 | Thermostat | 01 |
|
- | ||||
| 12 | 3608F019-32 | Retainer, Trim Bkgd | 01 |
|
- | ||||
| 13 | 8112P064-60 | Manual, Use & Care | 01 |
|
- | ||||
| 14 | 16009722 | Manual, Service-no Refund | 01 |
|
- | ||||
| 15 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
