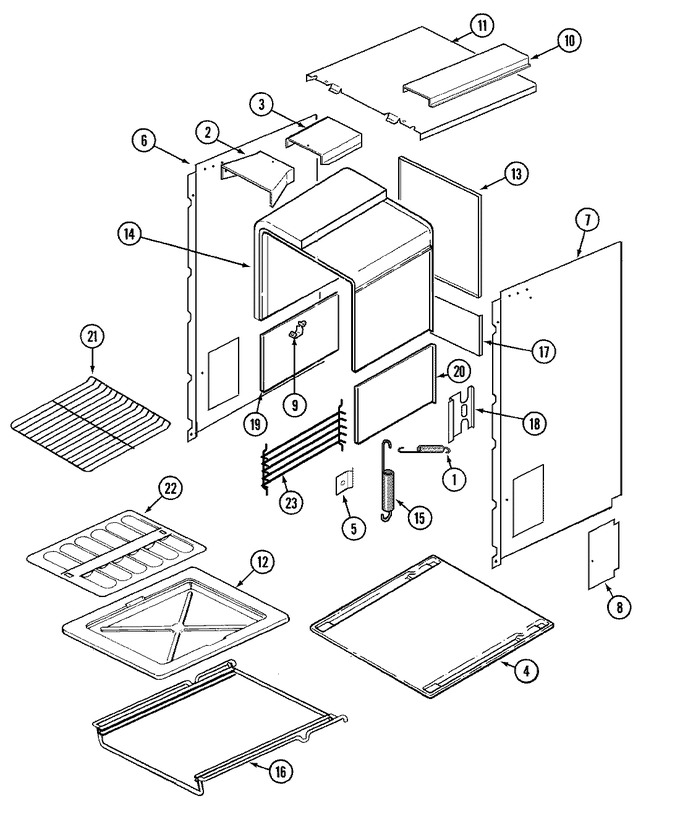

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body-rear
02 - Broiler Drawer (9112wp)
03 - Control Panel
04 - Door (9112wp)
05 - Gas Controls
06 - Oven
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7803P034-60 | Spring, Broiler Door | 01 |
|
- | ||||
| 2 | 3826F004-80 | Extension, Vent Box | 01 |
|
- | ||||
| 3 | 4006W078-51 | Box, Vent | 01 |
|
- | ||||
| 3 | 4006F083-80 | Adapter, Vent Box | 01 |
|
- | ||||
| 4 | 4003W018-51 | Base Assy | 01 |
|
- | ||||
| 5 | 3801F212-45 | Bracket | 01 |
|
- | ||||
| 6 | 2618F061-51 | Panel, End-lt | 01 |
|
- | ||||
| 7 | 2618F062-51 | Panel, End-rt | 01 |
|
- | ||||
| 8 | 4005F224-51 | Cover, Hinge | 01 |
|
- | ||||
| 9 | 7112P053-60 | Clip, Capillary | 01 |
|
- | ||||
| 10 | 4005F240-51 | Cover Wire Top | 01 |
|
- | ||||
| 11 | 3804F056-51 | Cover, Insulation | 01 |
|
- | ||||
| 12 | Y3401F02019 | Pan, Broil | 01 |
|
- | ||||
| 13 | 7002P089-60 | Insulation, Oven Bac | 01 |
|
- | ||||
| 14 | 7002P083-60 | Insulation, Oven Wrap | 01 |
|
- | ||||
| 15 | 7803P041-60 | Spring, Oven Door | 01 |
|
- | ||||
| 16 | 7801P018-60 | Rack, Broiler Pan | 01 |
|
- | ||||
| 17 | 4002F135-19 | Back Broiler | 01 |
|
- | ||||
| 18 | 3604F119-61 | Shield, Insulation | 01 |
|
- | ||||
| 19 | 2228F003-19 | Side Broiler L.t. | 01 |
|
- | ||||
| 20 | 2228F004-19 | Side Broiler Right | 01 |
|
- | ||||
| 21 | 7801P020-60 | Rack, Oven | 01 |
|
- | ||||
| 22 | Y3413F01619 | Insert, Broil Pan | 01 |
|
- | ||||
| 23 | 7808P003-60 | Runner, Broiler Rack | 01 |
|
- | ||||
| 25 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 25 | M0282009 | Nut 10-24 (Replaces: 7103P071-60) | 01 |
|
$ 12.06 |
