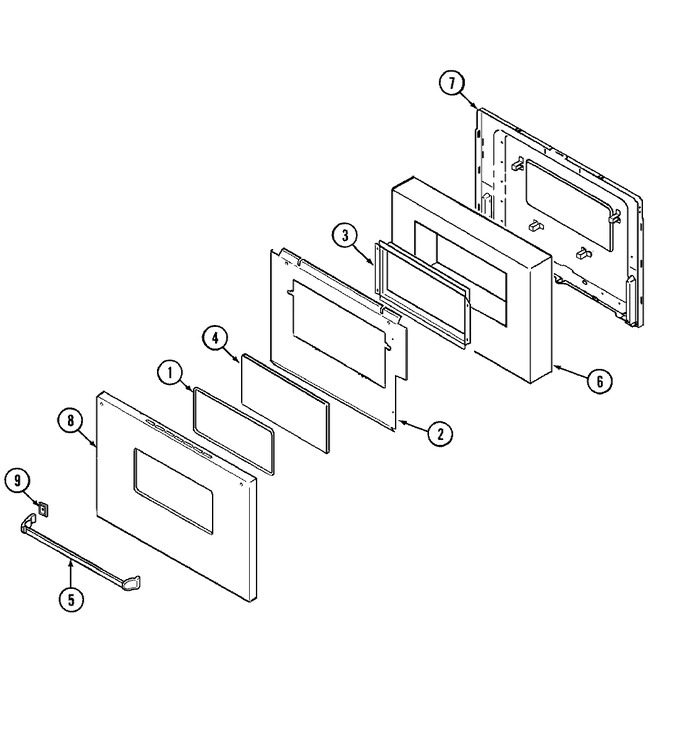

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7740P001-60 | Trim, Bezel Oven Door | 01 |
|
- | ||||
| 1 | 7118P009-60 | Bolt, Shoulder | 01 |
|
- | ||||
| 1 | WP3400074 | Screw (Replaces: 7101P068-60) | 01 |
|
$ 6.47 | ||||
| 2 | 3601F140-32 | Baffle, Door | 01 |
|
- | ||||
| 3 | 7907P005-60 | Glass, Oven Door Assy | 01 |
|
- | ||||
| 4 | 7902P241-60 | Glass, Oven Door Outside | 01 |
|
- | ||||
| 5 | 7701P122-60 | Handle, Door (blk) | 01 |
|
- | ||||
| 6 | 7002P058-60 | Insulation, Oven Door | 01 |
|
- | ||||
| 7 | 2402W197-19 | Lining, Door | 01 |
|
- | ||||
| 8 | 2401W104-71 | Panel Drawer | 01 |
|
- | ||||
| 9 | 8010P028-60 | Spacer, Door Handle | 01 |
|
- |
