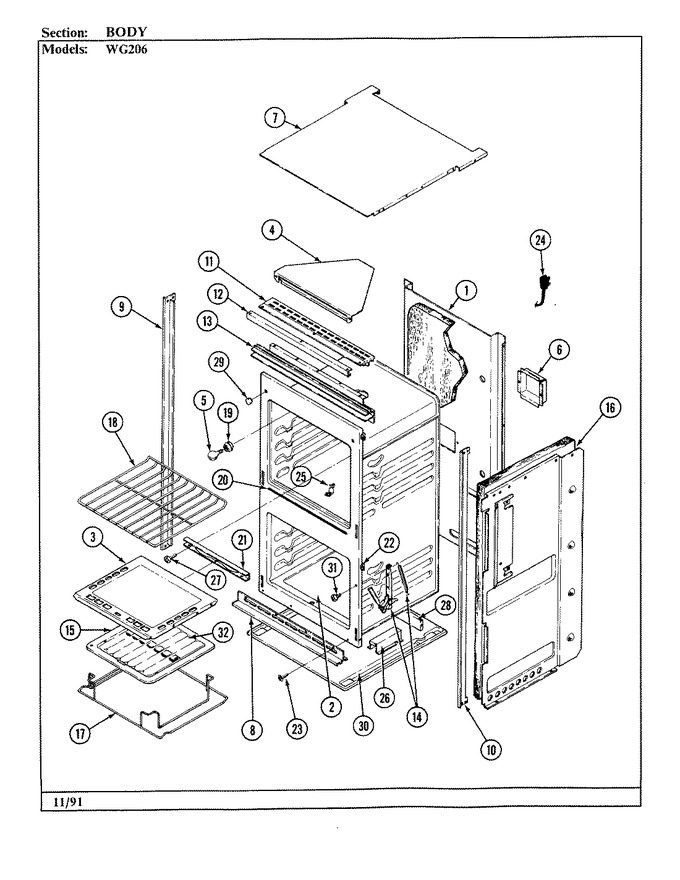

01 - Body
02 - Control Panel
03 - Door-lower
04 - Door-upper
05 - Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F041-51 | Back, Main | 1 |
|
- | ||||
| 2 | 3601F109-45 | Baffle | 1 |
|
- | ||||
| 2 | 2205F005-15 | Bottom, Oven Lower | 1 |
|
- | ||||
| 3 | 2205F008-15 | Bottom, Oven Upper | 1 |
|
- | ||||
| 4 | 4006W077-23 | Box Assy, Flue | 1 |
|
- | ||||
| 5 | 7404P026-60 | Thermostat | 1 |
|
- | ||||
| 6 | 4005F088-80 | Cover | 1 |
|
- | ||||
| 7 | W10204425 | Cover Box Wall Oven (Replaces: 4005F152-51) | 1 |
|
- | ||||
| 8 | 7706P153-60 | Extrusion, Bottom (blk) | 1 |
|
- | ||||
| 9 | 7706P112-60 | Extrusion, Side-l | 1-3 |
|
- | ||||
| 9 | 7750P029-60 | Extension, Side (left) | 5 |
|
- | ||||
| 9 | 7750P014-60 | Extrusion, Side-l | 4 |
|
- | ||||
| 10 | 7750P030-60 | Extension, Side (right) | 5 |
|
- | ||||
| 10 | 7706P113-60 | Extrusion, Side-r | 1-3 |
|
- | ||||
| 10 | 7750P015-60 | Extrusion, Side-r | 4 |
|
- | ||||
| 11 | 7706P114-60 | Extrusion, Top | 1 |
|
- | ||||
| 12 | 7706P185-60 | Extrusion, Top Front | 1 |
|
- | ||||
| 13 | 7756P027-60 | Extrusion Vent | 1 |
|
- | ||||
| 13 | 7756P008-60 | Extrusion, Vent | 1 |
|
- | ||||
| 14 | 7106A018-60 | Hinge, Oven Door | 2 |
|
- | ||||
| 14 | 7106A015-60 | Hinge, Upper Door | 1 |
|
- | ||||
| 14 | 7106A013-60 | Hinge, Lower Door | 1 |
|
- | ||||
| 14 | 7106A020-60 | Hinge, Oven Door | 2 |
|
- | ||||
| 15 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 16 | 2618F056-51 | Panel, Side-lt | 1 |
|
- | ||||
| 16 | 2618F055-51 | Panel, Side Right | 1 |
|
- | ||||
| 17 | 7801P016-60 | Rack, Broil Bright Chrome | 1-7 |
|
- | ||||
| 17 | 7801P034-60 | Oven Rack | 8 |
|
- | ||||
| 18 | 7801P005-60 | Rack | 1 |
|
- | ||||
| 19 | 7408P001-60 | Recept, Oven Light | 1 |
|
- | ||||
| 20 | 7212P014-60 | Seal, Door (top) | 1 |
|
$ 48.10 | ||||
| 21 | 5720A002-15 | Support Assy, Oven Bottom | 1 |
|
- | ||||
| 21 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 21 | 3807F029-80 | Support | 1 |
|
- | ||||
| 22 | 7112P020-60 | Clip, Oven Front | 1 |
|
- | ||||
| 23 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 1 |
|
$ 9.89 | ||||
| 23 | 7103P040-60 | Nut, Snap (wht) | 1 |
|
- | ||||
| 23 | 7103P051-60 | Nut, Snap | 1 |
|
- | ||||
| 23 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 1 |
|
$ 15.94 | ||||
| 24 | 7402P014-60 | Cord, Power | 1 |
|
- | ||||
| 25 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 26 | 4005F027-51 | Cover, Fuse Box | 1 |
|
- | ||||
| 27 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 28 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 28 | 3807F139-80 | Support | 1 |
|
- | ||||
| 29 | 8003P002-60 | Bumper Door (round) | 1-5 |
|
- | ||||
| 29 | 8003P009-60 | Bumper, Door (square) | 6 |
|
- | ||||
| 30 | 4003F013-80 | Base, Wall Oven | 1 |
|
- | ||||
| 31 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 1 |
|
$ 4.29 | ||||
| 32 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| NI | 7002P107-60 | Insulation, Wrapper | 1 |
|
- | ||||
| NI | 7002P109-60 | Insulation, Top & Rear | 1 |
|
- |
