01 - Body
02 - Control Panel
03 - Door-lower
04 - Door-upper
05 - Gas Controls
New Model Search:

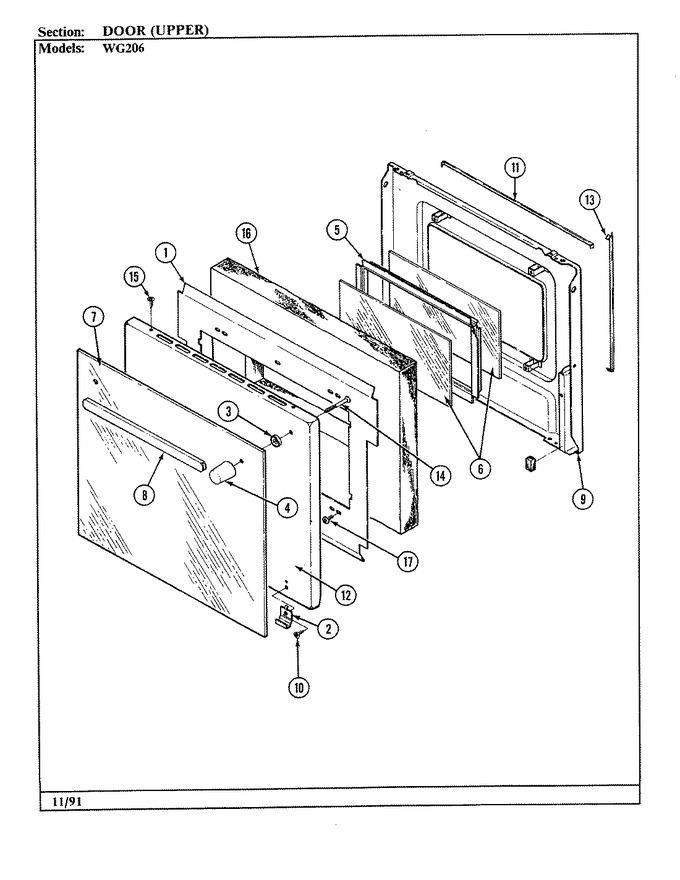

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F102-51 | Baffle, Upper Door | 1 |
|
- | ||||
| 2 | 3819F010-70 | Clip, Glass Retainer (blk) | 1 |
|
- | ||||
| 3 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 1 |
|
$ 13.08 | ||||
| 4 | 7744P007-60 | End Cap, Handle (blk) | 1 |
|
- | ||||
| 5 | 3603F013-80 | Frame, Window----na | 1 |
|
- | ||||
| 6 | 7902P035-60 | Glass, Door Inner | 1 |
|
- | ||||
| 7 | 7902P337-60 | Glass, Door Upper First Artic | 9 |
|
- | ||||
| 7 | 7902P282-60 | Glass, Door Screened | 1 |
|
- | ||||
| 8 | 7701P071-60 | Handle, Door----na | 1 |
|
- | ||||
| 9 | 2402W133-19 | Lining, Door | 1 |
|
- | ||||
| 10 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 1 |
|
$ 4.29 | ||||
| 11 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 1 |
|
$ 105.81 | ||||
| 12 | 2401F111-70 | Panel, Door (blk) | 9 |
|
- | ||||
| 12 | 2401F084-70 | Panel, Oven Door | 1 |
|
- | ||||
| 13 | 7212P003-60 | Seal, Oven Door | 1 |
|
$ 46.94 | ||||
| 14 | 7101P232-60 | Screw | 1 |
|
- | ||||
| 15 | 7101P242-60 | Screw | 1 |
|
- | ||||
| 16 | 7002P015-60 | Insulation, Door | 1 |
|
- | ||||
| 17 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 |
