01 - Body

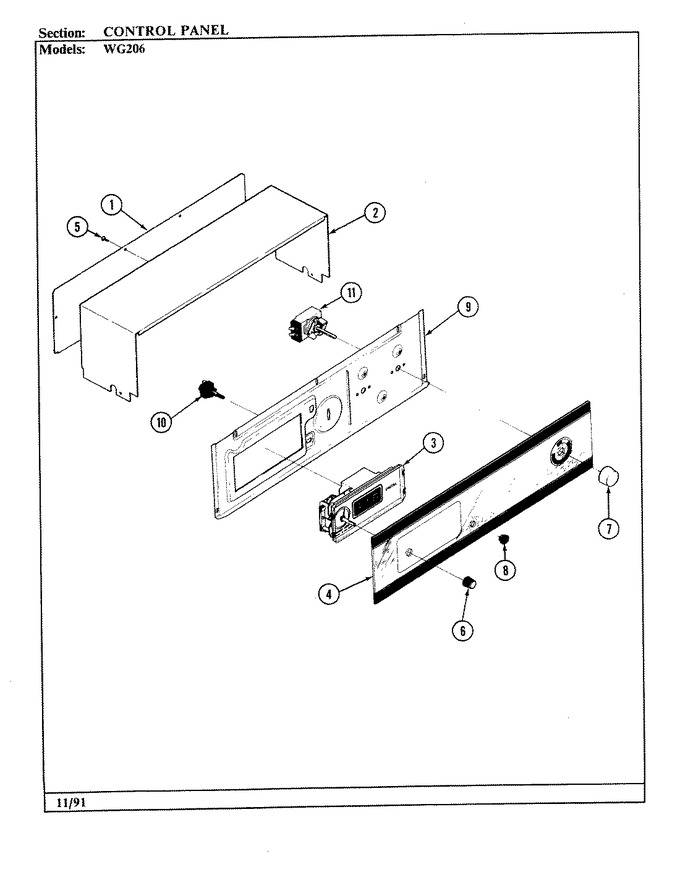

02 - Control Panel
03 - Door-lower
04 - Door-upper
05 - Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F151-51 | Cover, Rear Wire | 1 |
|
- | ||||
| 2 | 4005F153-51 | Cover, Wire | 1 |
|
- | ||||
| 3 | 7602P055-60 | Clock | 1 |
|
- | ||||
| 4 | 7912P034-60 | Glass, Control Panel | 1 |
|
- | ||||
| 5 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 6 | 7711P255-60 | Knob, Lt Sw & Clock | 1 |
|
- | ||||
| 7 | 7711P256-60 | Knob, Thermostat | 1 |
|
- | ||||
| 8 | 7214P007-60 | Sleeve, Switch (blk) | 1 |
|
- | ||||
| 9 | 3605F170-80 | Plate, Switch | 1 |
|
- | ||||
| 10 | 7403P109-60 | Switch, Push (blk) | 1 |
|
- | ||||
| 11 | 7101P239-60 | Screw | 1 |
|
- | ||||
| 11 | 7404P059-60 | Thermostat | 7 |
|
- | ||||
| 11 | 7404P023-60 | Control | 1-6 |
|
- |
