Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 704336 Plate, Motor 01 Appelez-nous -
2 701718 Blade, Fan 01 Appelez-nous -
3 Y704732 Mount, Motor 01 Appelez-nous -
4 700056 Instr Sheet 01 Appelez-nous -
5 Y701721 Motor, Fan 01 Appelez-nous -
6 M0282005 Nut, Hex   (Replaces: 701719) 01 Special Order $ 7.07

7 WP90767 Screw   (Replaces: Y700502) 01 In-Stock Immediately $ 7.04

8 WP90767 Screw   (Replaces: 715773) 01 In-Stock Immediately $ 7.04

9 704354 Switch, Bake Cycle 01 Appelez-nous -
10 704355 Switch, Broil Cycle 01 Appelez-nous -
10 Y04100260 Relay, Transformer Assy. 01 Special Order $ 209.32

10 704335 Screw 01 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

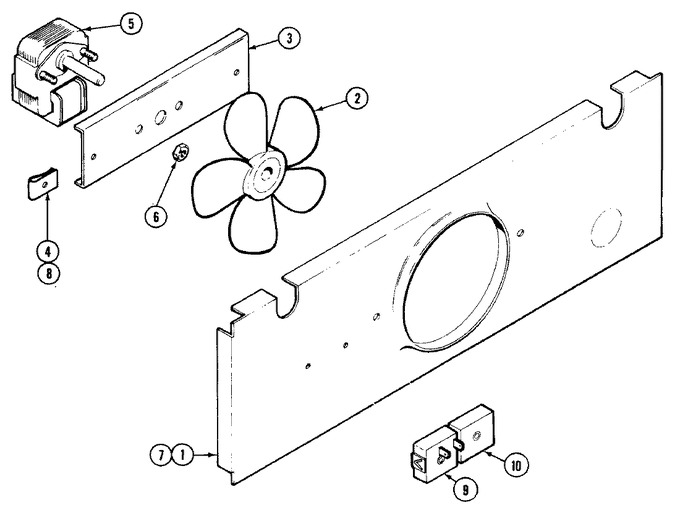

Diagram for WM227B
