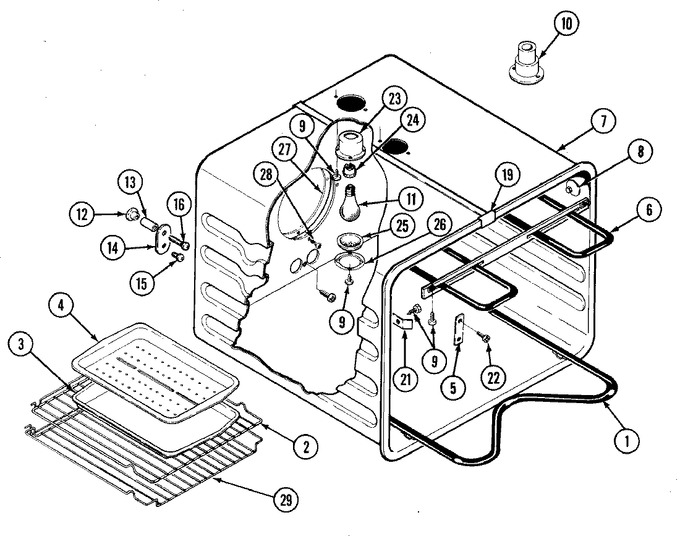

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y704665		Element, Bake	01	Appelez-nous	-
2	Y704661		Rack, Oven	01	Appelez-nous	-
3	4396923		Pan, Broil   (Replaces: 703164)	01		Immediately	$ 52.04
4	4396923		Insert, Broil Pan   (Replaces: 703165)	01		Immediately	$ 52.04
5	Y705342		Cover, Sensor Hole	01	Appelez-nous	-
6	WPY04100514		Element, Broil   (Replaces: Y704667)	01			$ 138.97
6	WP179051		Screw   (Replaces: 708764)	01		Immediately	$ 7.16
7	Y712577		Oven Weld Assy.	01	Appelez-nous	-
8	712088		Cover, Meat Probe	01	Appelez-nous	-
8	703007		Standoff	01	Appelez-nous	-
9	WP1163283		Screw   (Replaces: Y703741)	01			$ 6.47
10	701738		Tube, Vent	01	Appelez-nous	-
11	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	01		Immediately	$ 16.80
12	715294		Nut, Tee	01	Appelez-nous	-
13	701741		Spacer, Oven	01	Appelez-nous	-
14	701742		Plate, Grounding	01	Appelez-nous	-
15	WP71001171		Screw   (Replaces: Y707745)	01			$ 6.26
16	701744		Screw	01	Appelez-nous	-
16	701703		Insulation, Rear	01	Appelez-nous	-
16	701702		Insulation, Wrap	01	Appelez-nous	-
19	Y702618		Clip, Oven	01	Appelez-nous	-
21	WP179051		Screw   (Replaces: 708764)	01		Immediately	$ 7.16
21	Y701541		Clip, Bulb	01	Appelez-nous	-
22	WPW10253196		Screw   (Replaces: Y707113)	01			$ 3.76
23	704142		Receptacle, Holder	01	Appelez-nous	-
24	Y704145		Receptacle, Snap-in	01	Appelez-nous	-
25	Y704143		Lens, Light	01	Appelez-nous	-
26	Y704144		Retainer, Lens	01	Appelez-nous	-
27	705343		Plate, Non-convect	01	Appelez-nous	-
27	DE81-03744A		Plate, Convection Back   (Replaces: 701712)	01			$ 312.62
28	WP74003976		Washer   (Replaces: 702592)	01			$ 6.47
29	Y704663		Rack, Oven (offset)	01	Appelez-nous	-
NI	WP71001870		Probe, Meat   (Replaces: Y700884)	01			$ 201.71
NI	Y700883		Jack, Probe	01	Appelez-nous	-
NI	WP210720		Rivet   (Replaces: 701662)	01			$ 12.14
