SELECT A DIAGRAM

01 - Blower Motor (cooling Fan-lower)


02 - Blower Motor (lower Convection)


03 - Body-lower


04 - Control Panel (lower)


05 - Control Panel-upper (m166)


06 - Door (lower)


07 - Door-upper (m166)


08 - Interlock Switches-upper (m166)


09 - Internal Controls-lower


10 - Internal Controls-upper (m166)


11 - Liner (lower)


12 - Oven Liner-upper (m166)


13 - Trim (m166)

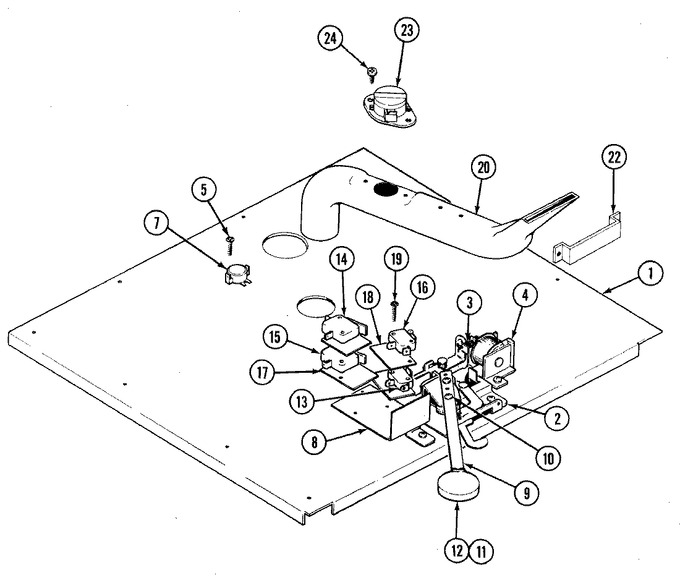

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704684		Panel, Top	01	Appelez-nous	-
2	Y703357		Latch Assy.	01	Appelez-nous	-
3	Y701686		Pin, Cotter	01	Appelez-nous	-
4	Y702526		Solenoid	01	Appelez-nous	-
4	703767		Wire, Gray	01	Appelez-nous	-
5	WP12990527		Screw   (Replaces: Y708955)	01		Immediately	$ 7.15
7	701687		Thermostat	01	Appelez-nous	-
8	701706		Shield, Switch	01	Appelez-nous	-
9	Y704240		Lever, Latch (blk)	01	Appelez-nous	-
10	707407		Screw	01			$ 6.42
10	Y700862		Washer	01	Appelez-nous	-
11	701671		Spring, Knob	01	Appelez-nous	-
12	Y703932		Knob (blk)	01	Appelez-nous	-
13	Y702360		Switch, Solenoid	01	Appelez-nous	-
14	702806		Switch, Door	01	Appelez-nous	-
15	702805		Switch, Door	01	Appelez-nous	-
16	Y703732		Switch, Latch	01	Appelez-nous	-
17	Y702350		Insulator	01	Appelez-nous	-
18	703264		Insulator	01	Appelez-nous	-
19	702807		Screw	01	Appelez-nous	-
20	704679		Tube, Vent	01	Appelez-nous	-
22	WP59002061		Screw   (Replaces: Y707172)	01			$ 6.98
22	701680		Bracket, Vent Tube	01	Appelez-nous	-
23	Y702750		Limit, Fan	01	Appelez-nous	-
NI	WP59002061		Screw   (Replaces: Y707172)	01			$ 6.98
NI	WP71001171		Screw, Ground   (Replaces: Y703817)	01			$ 6.26
NI	WP90767		Screw   (Replaces: 715773)	01		Immediately	$ 7.04

    View Diagram in Separate Window       Print Part List
